OEM numbers
SOLARIS 0000-219-327 · VAN HOOL 11271792 · VOLVO 16828094 · JAEGER 551024 · HEULIEZ 580193411201 · IVECO 5949 786404 · ASTRA 5949786404 · CATERPILLAR 5W-2024 · AGCO ACW1079300 · HEULIEZ HZ580193411201
Alternatives and compatible parts
HELLA 001946101 · LOHR 14722A · FRITZMEIER 223707 · HELLA 8JB 001 946-101 · HERTH+BUSS ELPARTS 51306730 · HELLA 8JB 001 946-101 · SOLARIS 0000-219-327 · VAN HOOL 11271792 · VOLVO 16828094 · JAEGER 551024 · HEULIEZ 580193411201 · IVECO 5949 786404 · ASTRA 5949786404 · CATERPILLAR 5W-2024 · AGCO ACW1079300 · HEULIEZ HZ580193411201

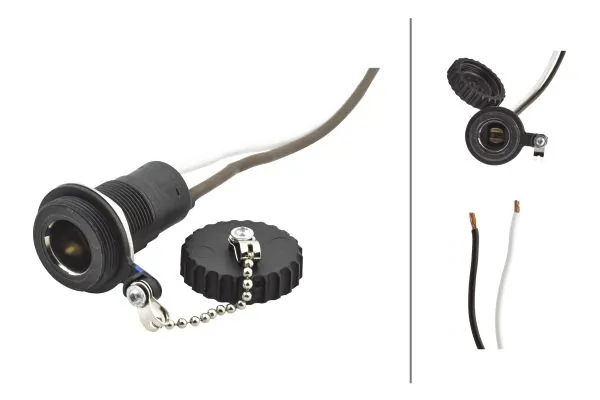

Socket HELLA 8JB 001 946-101
| Product Code | 8JB 001 946-101 |
| Brand | HELLA |
| Product group | Socket |
| EAN | 4082300217865 |
| Country of origin |  Austria |
| Weight | 0.046 kg |
| Voltage [V] | 24 |
| Length (mm) | 39,3 |
| Colour | must |
| Cross-Section (mm²) | 2,5 |
| Inner Diameter [mm] | 12 |
| Protection Class (IP code) | IP49K |
| Protection Class (IP code) | IP67 |
| Cable Length (mm) | 300 |
| Mounting Method | ettemonteeritud |
| DIN/ISO | 4165 |
| Current (A) | 16 |
| Quantity | 1 |
| Number of Plug Contacts | 2 |
| Plug Version | Lamepistik |
| Installation Diameter (mm) | 19 |
| temperature range from [°C] | -40 |
| Temperature Range up to [°C] | +105 |
15.47€
Out of stock
1
| SOLARIS | 0000-219-327 |
| VAN HOOL | 11271792 |
| VOLVO | 16828094 |
| JAEGER | 551024 |
| HEULIEZ | 580193411201 |
| IVECO | 5949 786404 |
| ASTRA | 5949786404 |
| CATERPILLAR | 5W-2024 |
| AGCO | ACW1079300 |
| HEULIEZ | HZ580193411201 |
