OEM numbers
SUZUKI 55611-61M00 · SUZUKI 55611-61M21-000 · SUZUKI 55611-70L00 · SUZUKI 55611-70L00-000
Alternatives and compatible parts
BOSCH 0 986 479 C44 · BREMBO 08.C046.11 · AP 15113 V · A.B.S. 18399 · NK 205232 · ATE 24.0109-0182.1 · NK 315232 · SWAG 33 10 7086 · ZIMMERMANN 540.5306.20 · JURID 563141JC · EUROBRAKE 5815205232 · EUROBRAKE 5815315232 · REMSA 61666.00 · ROADHOUSE 61666.00 · HELLA PAGID 8DD 355 120-531 · FTE 9072835 · FTE 9082299 · TEXTAR 92268403 · DELPHI BG4709C · BRECO BV 6105 · FERODO DDF2493C · HERTH+BUSS JAKOPARTS J3318008 · FEBI BILSTEIN 108494 · sbs 1815205232 · A.B.S. 18399 · NK 205232 · NK 315232 · SWAG 33 10 7086 · MEYLE 33-15 523 0006/PD · ProfiPower 3B2204 · JPN 40H8006-JPN · ZIMMERMANN 540.5306.20 · JURID 563141JC · JURID 563141JC-1 · EUROBRAKE 5815205232 · EUROBRAKE 5815315232 · DACO Germany 603712 · BLUE PRINT ADK84345 · BRAXIS AE1037 · DELPHI BG4709C · FTE BS7754 · BREMSI CD8493S · SIGMAUTO DBC493S · FERODO DDF2493C · HERTH+BUSS JAKOPARTS J3318008 · ASHUKI by Palidium K016-66 · NPS S331I06 · DELPHI BG4709C-18B1
Compatible vehicles
SUZUKI: S-CROSS, SWIFT IV (FZ, NZ), SX4 S-CROSS (JY), VITARA (LY)

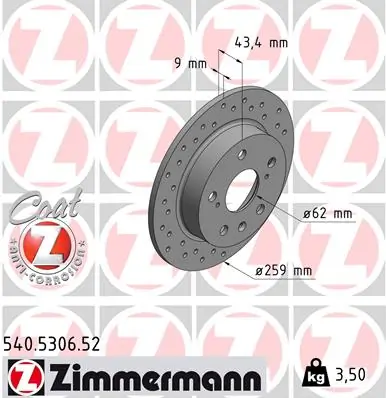

Brake Disc ZIMMERMANN 540.5306.52
| Product Code | 540.5306.52 |
| Brand | ZIMMERMANN |
| Product group | Brake Disc |
| EAN | 4250238776734 |
| Weight | 3.5 kg |
| Number of Rim Holes | 5 |
| Height (mm) | 43 |
| Weight (kg) | 3,5 |
| Brake Disc Type | täis |
| Brake Disc Type | perforeeritud |
| Brake Disc Thickness [mm] | 9 |
| Minimum Thickness (mm) | 8 |
| Bolt Pattern / Number of Holes | 8/5 |
| Outer Diameter [mm] | 259 |
| Centring Diameter (mm) | 62 |
| Bore Ø (mm) | 114 |
| Surface | kaetud |
| SUZUKI | 55611-61M00 |
| SUZUKI | 55611-61M21-000 |
| SUZUKI | 55611-70L00 |
| SUZUKI | 55611-70L00-000 |
