OEM numbers
SUZUKI 55611-61M00 · SUZUKI 55611-61M20 · SUZUKI 55611-61M21
Alternatives and compatible parts
BOSCH 0 986 479 C44 · BREMBO 08.C046.11 · FEBI BILSTEIN 108494 · CAR 142.1884 · AP 15113 V · sbs 1815205232 · sbs 1815315232 · NK 205232 · NK 315232 · ZIMMERMANN 540.5306.20 · JURID 563141JC · CIFAM 800-1531C · HELLA 8DD 355 120-531 · HELLA PAGID 8DD 355 120-531 · TEXTAR 92268403 · BENDIX BDS1801 · DELPHI BG4709C · FTE BS7754 · FTE BS7754B · BRECO BV 6105 · FERODO DDF2493C · HERTH+BUSS JAKOPARTS J3318008 · MINTEX MDC2612 · NIPPARTS N3318010 · LPR S5020P · BOSCH 0 986 479 C44 · BREMBO 08.C046.11 · KAMOKA 103506 · FEBI BILSTEIN 108494 · AP 15113 V · EUROREPAR 1676008980 · EUROREPAR 1687786780 · sbs 1815205232 · sbs 1815315232 · A.B.S. 18399 · MASTER-SPORT GERMANY 200901820 · MASTER-SPORT GERMANY 200951820 · NK 205232 · METELLI 23-1531C · MASTER-SPORT GERMANY 24010901821-PCS-MS · MASTER-SPORT GERMANY 24010901821-SET-MS · MASTER-SPORT GERMANY 24010901821PR-PCS-MS · NK 315232 · SWAG 33 10 7086 · MEYLE 33-15 523 0006/PD · ProfiPower 3B2204 · JPN 40H8006-JPN · Oyodo 40H8006-OYO

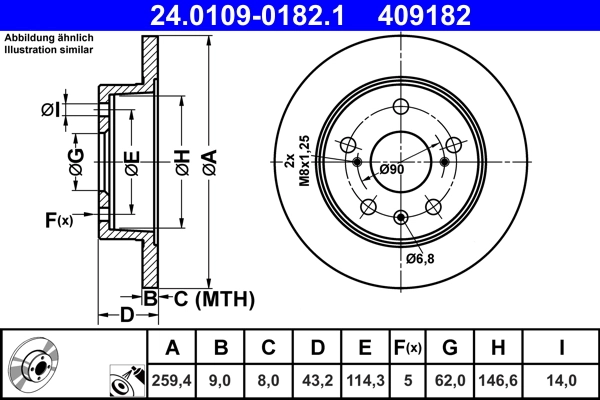

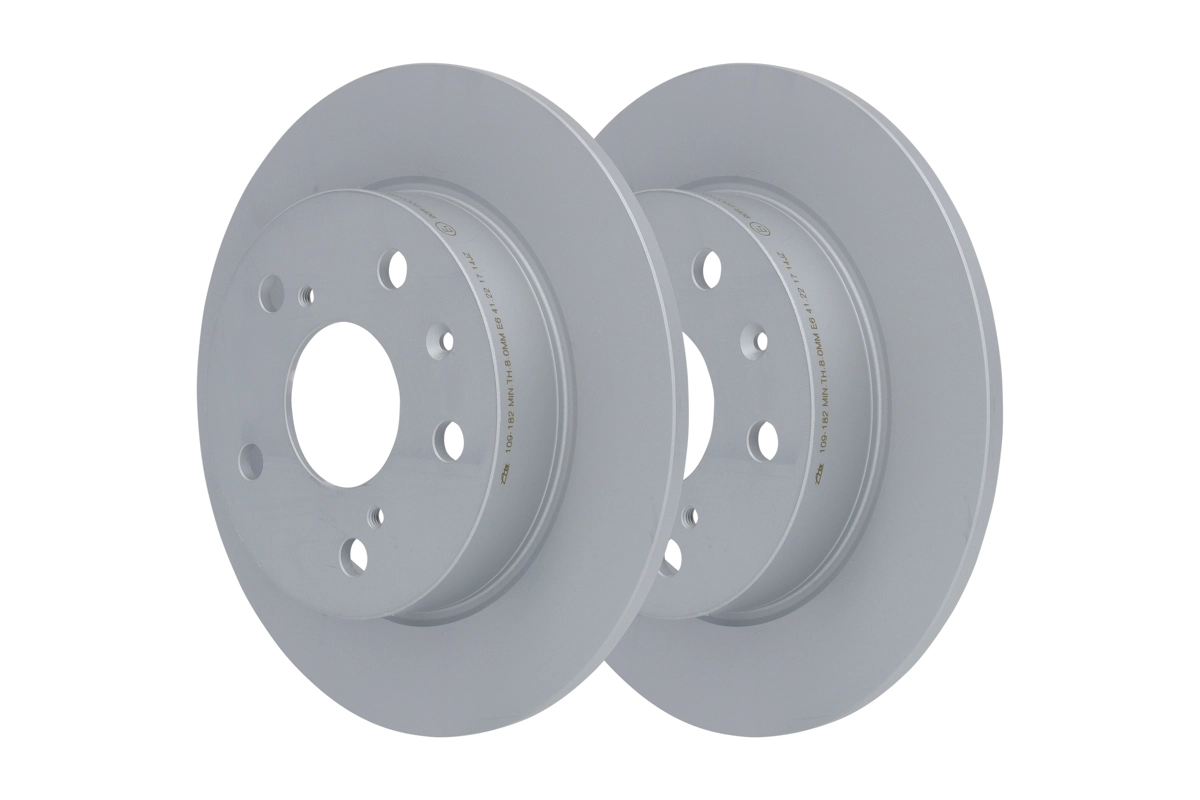

Brake Disc ATE 24.0109-0182.1
| Product Code | 24.0109-0182.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633415651 |
| Country of origin |  Spain |
| Weight | 3.645 kg |
| Height (mm) | 43,2 |
| Bore Diameter [mm] | 14,0 |
| Brake Disc Type | täis |
| Brake Disc Thickness [mm] | 9,0 |
| Minimum Thickness (mm) | 8,0 |
| Inner Diameter [mm] | 146,6 |
| Outer Diameter [mm] | 259,4 |
| Number of Holes | 5 |
| Centring Diameter (mm) | 62,0 |
| Bore Ø (mm) | 114,3 |
| Surface | kaetud |
Min. order: 2 pcs
| SUZUKI | 55611-61M00 |
| SUZUKI | 55611-61M20 |
| SUZUKI | 55611-61M21 |
