OEM numbers
SUZUKI 43511-62J10 · SUZUKI 43511-62J11 · OPEL 47 00 448 · VAUXHALL 47 00 448 · OPEL 47 08 277 · VAUXHALL 47 08 277 · OPEL 93193100 · VAUXHALL 93193100 · OPEL 95513699 · VAUXHALL 95513699
Alternatives and compatible parts
sbs 1825255217 · FEBI BILSTEIN 183839 · NK 255217 · HELLA 8DT 355 302-931 · HELLA PAGID 8DT 355 302-931 · TEXTAR 94043000 · BENDIX BDM1137 · DELPHI BF571 · FERODO FDR329808 · HERTH+BUSS JAKOPARTS J3408025 · MINTEX MBD384 · NIPPARTS N3402051 · A.B.S. 2914-S · TRW DB4571 · HERTH+BUSS JAKOPARTS J3408025 · SWAG 33 10 9227 · BLUE PRINT ADBP470029 · FEBI BILSTEIN 183839 · SUZUKI 43511-62J10 · SUZUKI 43511-62J11 · OPEL 47 00 448 · VAUXHALL 47 00 448 · OPEL 47 08 277 · VAUXHALL 47 08 277 · OPEL 93193100 · VAUXHALL 93193100 · OPEL 95513699 · VAUXHALL 95513699
Compatible vehicles
OPEL: AGILA B (H08) · SUZUKI: SPLASH (EX), SWIFT III (MZ, EZ) · VAUXHALL: AGILA Mk II (B) (H08)

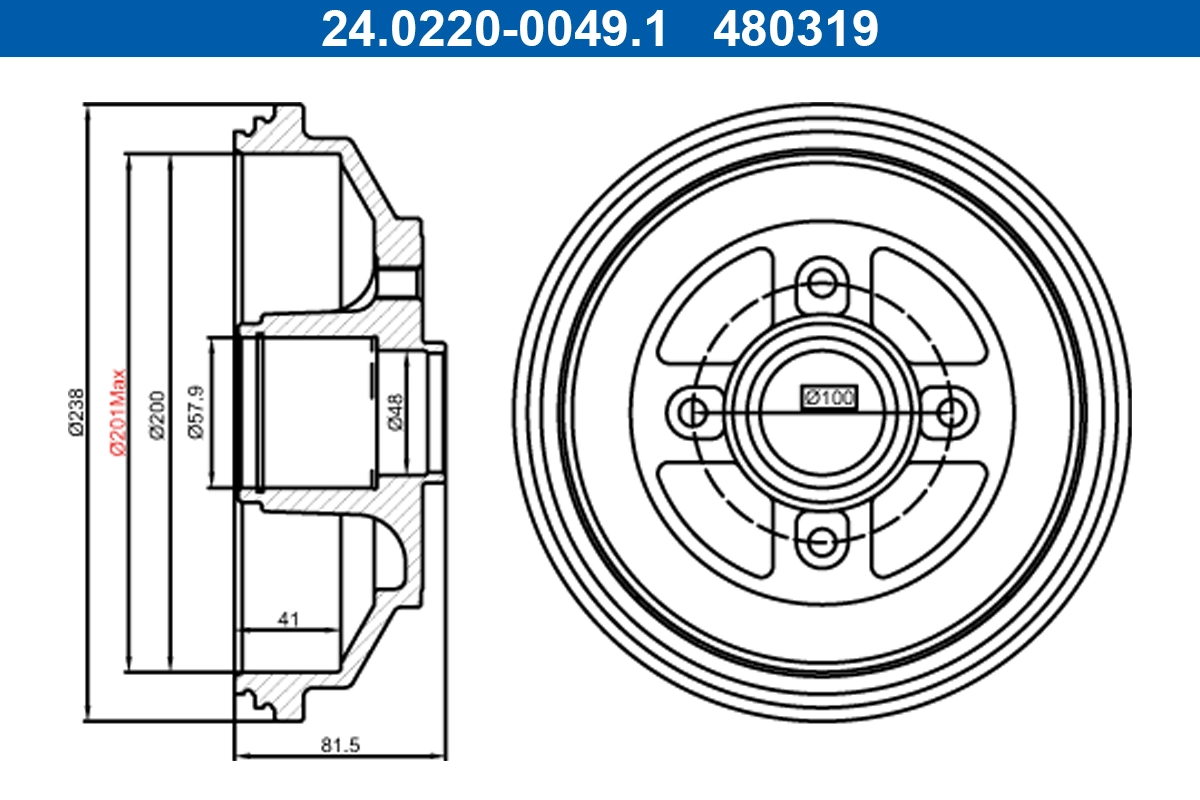

Brake Drum ATE 24.0220-0049.1
| Product Code | 24.0220-0049.1 |
| Brand | ATE |
| Product group | Brake Drum |
| EAN | 4006633467322 |
| Country of origin |  Spain |
| Weight | 5.885 kg |
| Thread Size | M12x1,5 |
| Brake Drum Outer Diameter [mm] | 238,0 |
| max. brake drum turning diameter [mm] | 201,0 |
| Brake Drum Inner Height [mm] | 41,0 |
| Brake Drum Total Height [mm] | 81,5 |
| Number of Holes | 4 |
| Bore Ø (mm) | 100,0 |
| Diameter, bracket (mm) | 57,9 |
| Brake Drum Inner Diameter [mm] | 200,0 |
| Inner Diameter 2 (mm) | 48,0 |
Min. order: 2 pcs
| SUZUKI | 43511-62J10 |
| SUZUKI | 43511-62J11 |
| OPEL | 47 00 448 |
| VAUXHALL | 47 00 448 |
| OPEL | 47 08 277 |
| VAUXHALL | 47 08 277 |
| OPEL | 93193100 |
| VAUXHALL | 93193100 |
| OPEL | 95513699 |
| VAUXHALL | 95513699 |
