OEM numbers
TOYOTA 27040 54280 · TOYOTA 27040 54290 · TOYOTA 27040 54300 · TOYOTA 27040 54310 · TOYOTA 27040 54440 · TOYOTA 27040 54500 · TOYOTA 27040 54580 · TOYOTA 27060 54140
Alternatives and compatible parts
DENSO 100213-1730 · DENSO 100213-1770 · DENSO 100213-2350 · DENSO 100213-2351 · DENSO 100213-2470 · DENSO 100213-2471 · DENSO 100213-2580 · DENSO 100213-2920 · HELLA 8EL 737 558-001 · HC-PARTS JA 1367 IR · LUCAS ELECTRICAL LRA 2710 · LUCAS ELECTRICAL LRA02710 · LUCAS ELECTRICAL LRB 308 · LUCAS ELECTRICAL LRB00308 · DA SILVA 031470 · MAGNETI MARELLI 063731367010 · ALANKO 10442133 · HC-Cargo 111963 · FARCOM 119708 · EUROTEC 12060768 · BV PSH 195.705.070.050 · AES PSH 195.705.070.050 · BV PSH 195.705.070.058 · BV PSH 195.705.070.059 · REAL 20132231BN · SANDO 2040132.0 · ERA 210267A · MESSMER 210267A · ERA 210267R · MESSMER 210267R · DRI 235166702 · WAI 23710N · ELSTOCK 28-2726 · SERCORE 280486 · Henkel Parts 3114372 · Henkel Parts 3114373 · Exact 4-0072 · AD KÜHNER 401367RI · VALEO 439823 · LGK 446416 · WE PARTS 471290343 · NK 4890162 · RIDEX 4G0237 · MEAT & DORIA 5540437 · EAI 56950 · PowerMax 89213302 · HELLA 8EL 012 428-041 · STARTCAR 950ST65
Compatible vehicles
TOYOTA: HIACE IV Buss (__H1_, __H2_), HIACE IV Kaubik (__H1_, __H2_)

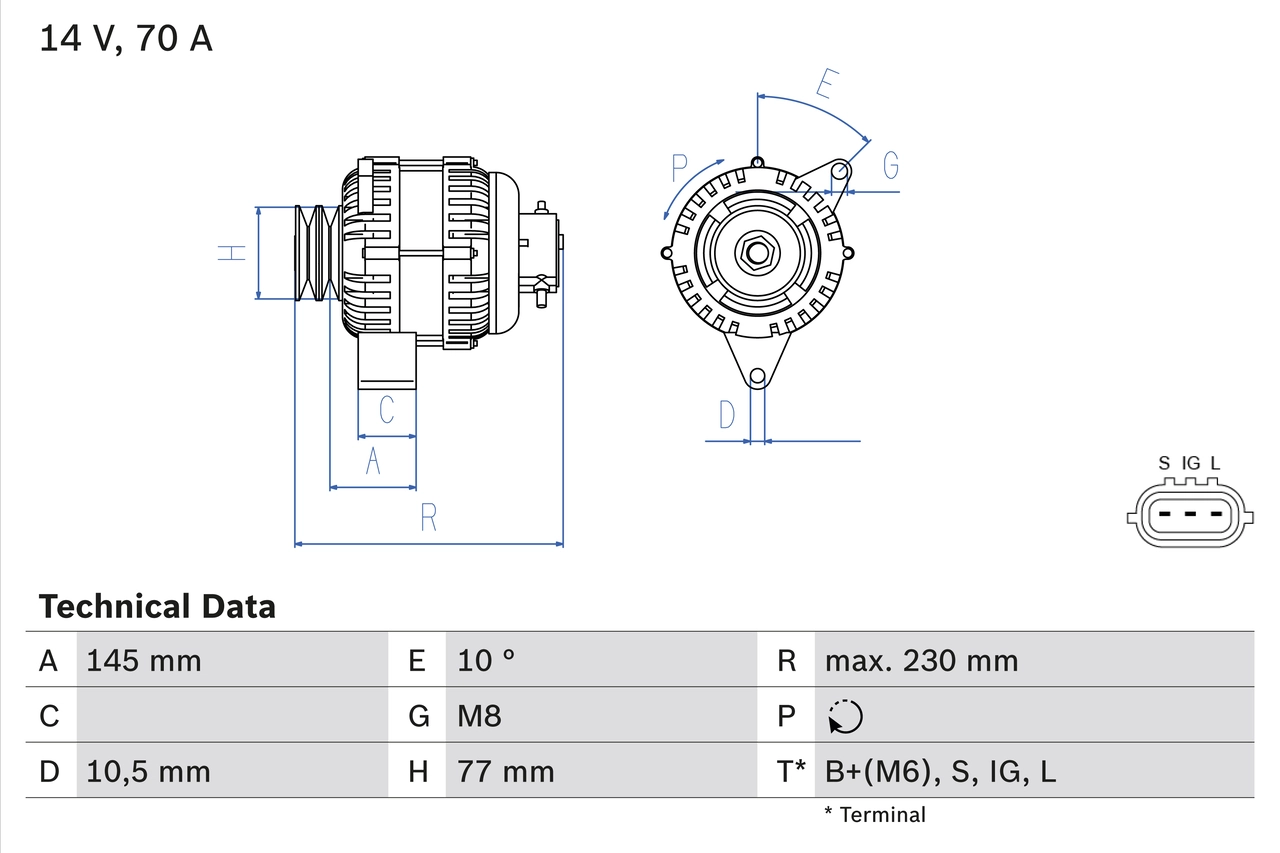

Alternator BOSCH 0 986 049 510
| Product Code | 0986049510 |
| Brand | BOSCH |
| Product group | Alternator |
| Country of origin |  Austria |
| Weight | 6.59 kg |
| Voltage [V] | 14 |
| Alternator Charging Current [A] | 70 |
| Length (mm) | 230 |
| Fastening Method | Konsool |
| Pulleys Ø (mm) | 77 |
| Pulleys | koos topeltrihmarattaga |
| Direction of Rotation | Keeramine päripäeva |
| Alternator Version | koos vaakumpumbaga |
| Number of Grooves | 2 |
| distance from pulley to alternator [mm] | 145 |
| recommended repair scope extension | kiilrihm/soonrihm |
| TOYOTA | 27040 54280 |
| TOYOTA | 27040 54290 |
| TOYOTA | 27040 54300 |
| TOYOTA | 27040 54310 |
| TOYOTA | 27040 54440 |
| TOYOTA | 27040 54500 |
| TOYOTA | 27040 54580 |
| TOYOTA | 27060 54140 |
