OEM numbers
FIAT 46819776 · FIAT 51863509 · FIAT 51863510 · FIAT 51900802 · FIAT 51900803 · FIAT 7550119 · FIAT 7599325 · FIAT 7750119 · LANCIA 7750119
Alternatives and compatible parts
BOSCH 0 986 477 083 · BOSCH 0 986 BB4 524 · KRAFTVOLL GERMANY 07050073 · KAMOKA 104026 · FEBI BILSTEIN 10561 · AKRON-MALÒ 1120018 · AUTOMEGA 120009610 · RIDEX 123B0038 · BREMBO 14.6755.10 · JP GROUP 1563501100 · sbs 1825252309 · MAXGEAR 19-0831 · MEYLE 215 523 0017 · HART 218 226 · ZIMMERMANN 230.1910.20 · ABAKUS 231-06-003 · VALEO 237027 · ATE 24.0218-0011.1 · A.B.S. 2416-S · NK 252309 · AUTO-SPEED PARTS 290BK04299 · DACO Germany 302320 · TOPRAN 304 232 · MAPCO 35032 · KAGER 36-0007 · CAR 433.062 · PROFIT 5020-1025 · ASHIKA 56-00-0200C · JAPKO 560200C · EUROBRAKE 5825252309 · PILENGA 6011 · STELLOX 6025-2309-SX · KRAFT AUTOMOTIVE 6063000 · PAGID 60905 · JPN 60H9004-JPN · VILLAR 627.0080 · ProfiPower 6B2009 · SWAG 70 91 0561 · REMSA 7068.00 · ROADHOUSE 7068.00 · LPR 7D0042 · KAWE 7D0042 · LPR-CN 7D0042 · SAMKO-SA 7D0042 · LPR-SA 7D0042 · AP-SA 7D0042 · GAMA-SA 7D0042 · LPR 7D0043
Compatible vehicles
FIAT: 500 (312_), 500 C (312_), 500L (351_, 352_), BRAVA (182_), BRAVO I (182_) · LANCIA: DEDRA (835_), DEDRA SW (835_), DELTA II (836_), Y (840_)

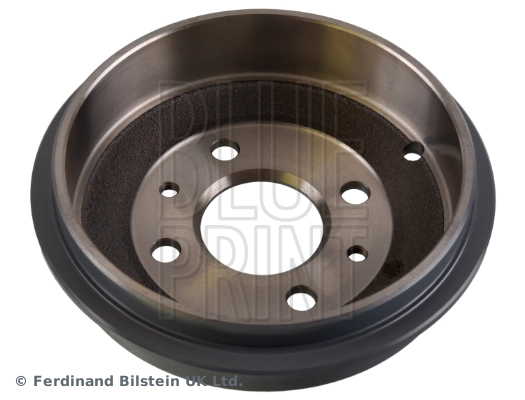

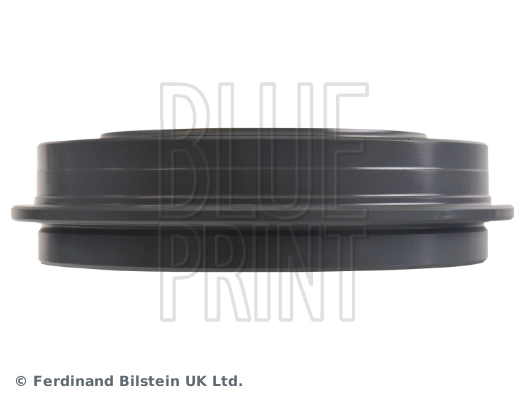

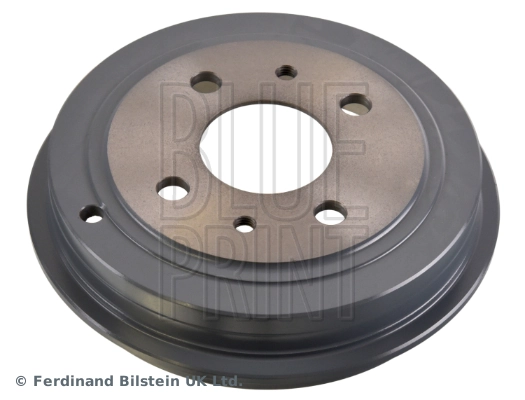

Brake Drum BLUE PRINT ADBP470017
| Product Code | ADBP470017 |
| Brand | BLUE PRINT |
| Product group | Brake Drum |
| EAN | 5057746189303 |
| Country of origin |  Austria |
| Weight | 2.945 kg |
| Package | 2 pcs |
| Number of Rim Holes | 4 |
| Fitting Side | Tagasild |
| Thickness / Strength (mm) | 54 |
| Width (mm) | 40 |
| Weight (kg) | 2,9 |
| max. brake drum turning diameter [mm] | 181,35 |
| Inner Diameter [mm] | 180 |
| Outer Diameter [mm] | 214 |
| Centring Diameter (mm) | 59 |
| Bore Ø (mm) | 98 |
| Number of Mounting Holes | 1 |
Min. order: 2 pcs
| FIAT | 46819776 |
| FIAT | 51863509 |
| FIAT | 51863510 |
| FIAT | 51900802 |
| FIAT | 51900803 |
| FIAT | 7550119 |
| FIAT | 7599325 |
| FIAT | 7750119 |
| LANCIA | 7750119 |
