OEM numbers
IVECO 02257002 · DEUTZ 02257002 · DEUTZ 04255260 · STILL 0513067 · DAF 1658004 · DEUTZ 41910907 · DAF 555076 · CASE IH 79092955 · MAN 81259026020 · CASE IH E113667
Alternatives and compatible parts
BOSCH 0 333 009 002 · BOSCH 0 333 009 005 · s-Tec 13 490 300 · IVECO 02257002 · DEUTZ 02257002 · DEUTZ 04255260 · STILL 0513067 · DAF 1658004 · DEUTZ 41910907 · DAF 555076 · CASE IH 79092955 · MAN 81259026020 · CASE IH E113667

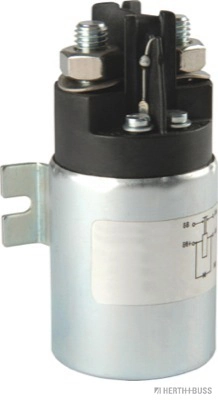

Relay, main current HERTH+BUSS ELPARTS 75613313
| Product Code | 75613313 |
| Brand | HERTH+BUSS ELPARTS |
| Product group | Relay, main current |
| EAN | 4026736381264 |
| Weight | 0.78 kg |
| Connection Technology | 2 x M10 |
| Connection Technology | 2 x M4 |
| Protection Class (IP code) | IP 67 |
| Fastening Method | Flantsikinnitus |
| Current (A) | 300 |
| Number of Plug Contacts | 4 |
| Switch Function | raceing-kinnitus |
| Weight (g) | 810 |
| Rated Voltage (V) | 24 |
| Plug Version | Kruvikontakt |
| Operating Voltage 24V | 300 A |
| Operating Voltage 24V | 400 A - 20 Sec. |
| Operating Voltage 24V | 600 A - 1 Sec. |
| Torque from [Nm] | 12 |
| Torque up to [Nm] | 13 |
| temperature range from [°C] | -40 |
| Temperature Range up to [°C] | +80 |
169.1€
Availability 11
1
| IVECO | 02257002 |
| DEUTZ | 02257002 |
| DEUTZ | 04255260 |
| STILL | 0513067 |
| DAF | 1658004 |
| DEUTZ | 41910907 |
| DAF | 555076 |
| CASE IH | 79092955 |
| MAN | 81259026020 |
| CASE IH | E113667 |
