OEM numbers
IVECO 02257002 · DEUTZ 02257002 · DEUTZ 04255260 · STILL 0513067 · DAF 1658004 · DEUTZ 41910907 · DAF 555076 · MAN 81259026020 · CASE IH E113667
Alternatives and compatible parts
BOSCH 0 333 009 002 · BOSCH 0 333 009 005 · s-Tec 13 490 210 · BOM-Prestolite 860861 · DURITE DRT0-335-39 · BOSCH 0 333 009 002 · WE PARTS 240670241 · HOFFER 7233404 · MEAT & DORIA 73233404 · AS-PL SS9006(BOSCH) · AS-PL SS9006P · MESSMER ZM1404 · SANDO SRL10616.1 · CASCO CRL10616GS · REAL 22901616OE · IVECO 02257002 · DEUTZ 02257002 · DEUTZ 04255260 · STILL 0513067 · DAF 1658004 · DEUTZ 41910907 · DAF 555076 · MAN 81259026020 · CASE IH E113667

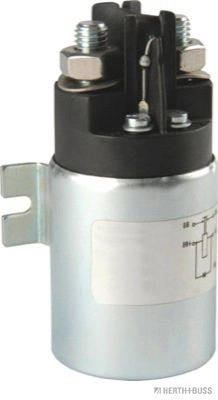

Relay, main current HERTH+BUSS ELPARTS 75613312
| Product Code | 75613312 |
| Brand | HERTH+BUSS ELPARTS |
| Product group | Relay, main current |
| Connection Technology | 2 x M10 |
| Connection Technology | 2 x M4 |
| Protection Class (IP code) | IP 67 |
| Fastening Method | Flantsikinnitus |
| Current (A) | 200 |
| Number of Plug Contacts | 4 |
| Switch Function | raceing-kinnitus |
| Weight (g) | 810 |
| Rated Voltage (V) | 24 |
| Plug Version | Kruvikontakt |
| Torque from [Nm] | 12 |
| Torque up to [Nm] | 13 |
| temperature range from [°C] | -40 |
| Temperature Range up to [°C] | +85 |
133.5€
Out of stock
1
| IVECO | 02257002 |
| DEUTZ | 02257002 |
| DEUTZ | 04255260 |
| STILL | 0513067 |
| DAF | 1658004 |
| DEUTZ | 41910907 |
| DAF | 555076 |
| MAN | 81259026020 |
| CASE IH | E113667 |
