OEM numbers
ALFA ROMEO 46437520 · FIAT 46437520 · LANCIA 46437520 · FIAT 46522234 · FIAT 46830212
Alternatives and compatible parts
BOSCH 0 001 108 204 · BOSCH 0 001 109 048 · BOSCH 0 986 018 450 · MAGNETI MARELLI 063521082040 · VALEO 458 585 · MAGNETI MARELLI 631 130 03 · HELLA 8EA 737 901-001 · DELCO REMY 918450 · HC-PARTS CS 1212 · DELCO REMY DRS 8450 · DENSO DSN 581 · LUCAS ELECTRICAL LRT 200 · LUCAS ELECTRICAL LRT00200 · MAGNETI MARELLI MSN 2001 · MAGNETI MARELLI MSN 824 · BOSCH 0 986 018 450 · DA SILVA 020435 · MAGNETI MARELLI 063521082040 · BOSCH 1 986 S00 701 · AD KÜHNER 101212 · AD KÜHNER 101212B · ALANKO 10440859 · FARCOM 104571 · HC-Cargo 114321 · EAI 11948 · CTR 1265046 · HC-Cargo 132816 · HC-Cargo 137481 · Exact 2-0239 · VALEO 201112 · REAL 20401853BN · REAL 20401853OE · Omnicraft 2131391 · ERA 220155 · MESSMER 220155 · ERA 220155A · MESSMER 220155A · ERA 220155R · MESSMER 220155R · HC-Cargo 234903 · HC-Cargo 237366 · ELSTOCK 25-3175 · SERCORE 260251 · CEVAM 3014 · Henkel Parts 3118742 · Henkel Parts 3118743 · Henkel Parts 3118745 · WAI 31202N
Starter BOSCH 0 001 108 247
| Product Code | 0001108247 |
| Brand | BOSCH |
| Product group | Starter |
| Country of origin |  Austria |
| Weight | 3.326 kg |
| Voltage [V] | 12 |
| Number of Teeth | 9 |
| Starter Power (kW) | 1,8 |
| Length (mm) | 241,5 |
| Bore Diameter [mm] | 9 |
| Position / Degree | links |
| Terminal | 30 |
| Terminal | 50 |
| Direction of Rotation | Keeramine päripäeva |

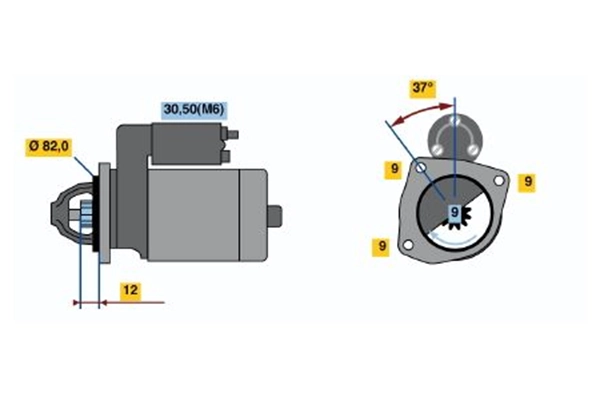

| Flange Diameter [mm] | 82 |
| Number of Threaded Holes | 0 |
| Bore Diameter 2 [mm] | 9 |
| Bore Ø 3 (mm) | 9 |
| Starter Version | kinnine |
| Number of Mounting Holes | 3 |
| Mounting Angle (degree) | 37 |
| system basic position (mm) | 8,5 |
| Gripper Opening Angle [degree] | 53 |
| Angle Dimension, V-stay [degree] | 37 |
| ALFA ROMEO | 46437520 |
| FIAT | 46437520 |
| LANCIA | 46437520 |
| FIAT | 46522234 |
| FIAT | 46830212 |
