OEM numbers
HYUNDAI 5171226100
Alternatives and compatible parts
BOSCH 0 986 479 434 · BREMBO 09.9598.10 · BREMBO 09.9598.11 · ASHUKI by Palidium 0990-6250 · CAR 142.1183 · A.B.S. 17197 · A.B.S. 17197 OE · sbs 1815203415 · sbs 1815313415 · E.T.F. 19-2139 · NK 203415 · METELLI 23-0593 · FARCOM 231254 · ATE 24.0126-0127.1 · AP 24938 · AP 24938 V · MAPCO 25519 · ZIMMERMANN 285.3506.00 · ZIMMERMANN 285.3506.50 · ZIMMERMANN 285.3506.52 · ALANKO 305291 · NK 313415 · FEBI BILSTEIN 31474 · JP GROUP 3563100509 · KAGER 37-0751 · MEYLE 37-15 521 0022 · ATE 426127 · BENDIX 562549BC · JURID 562549JC · ASHIKA 60-0H-H21 · GIRLING 6044431 · JAPKO 60H21 · METZGER AUTOTEILE 6110620 · VILLAR 628.1836 · KAWE 6897 10 · METZGER AUTOTEILE 6897.10 · REMSA 6897.10 · ROADHOUSE 6897.10 · CIFAM 800-593 · TRISCAN 8120 43120 · HELLA PAGID 8DD 355 111-751 · HELLA PAGID 8DD 355 118-671 · SWAG 90 93 1474 · TEXTAR 92136403 · ACDelco AC2891D · COMLINE ADC1050V · BLUE PRINT ADG04341 · BORG & BECK BBD4591
Compatible vehicles
HYUNDAI: SANTA FÉ I (SM)

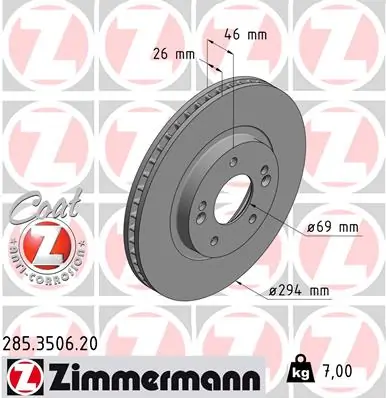

Brake Disc ZIMMERMANN 285.3506.20
| Product Code | 285.3506.20 |
| Brand | ZIMMERMANN |
| Product group | Brake Disc |
| EAN | 4250238765998 |
| Weight | 7 kg |
| Number of Rim Holes | 5 |
| Height (mm) | 46 |
| Weight (kg) | 7 |
| Brake Disc Type | sisemine õhutus |
| Brake Disc Thickness [mm] | 26 |
| Minimum Thickness (mm) | 24,4 |
| Bolt Pattern / Number of Holes | 7/5 |
| Outer Diameter [mm] | 294 |
| Centring Diameter (mm) | 69 |
| Bore Ø (mm) | 114 |
| Surface | kaetud |
| HYUNDAI | 5171226100 |
