OEM numbers
BMW 34 11 6 774 875 · BMW 34 11 6 792 219 · BMW 34 11 6 855 006 · BMW 34 11 8 848 417
Alternatives and compatible parts
BOSCH 0 986 479 381 · BREMBO 09.B337.11 · BREMBO 09.B337.21 · BREMBO 09.B337.2X · ZIMMERMANN 150.2900.20 · ZIMMERMANN 150.3467.20 · ZIMMERMANN 150.3467.52 · sbs 1815201582 · VALEO 196044 · VALEO 197159 · NK 201582 · METELLI 23-0986C · AP 25283 V · FEBI BILSTEIN 30541 · PAGID 54761PRO · REMSA 61194.10 · ROADHOUSE 61194.10 · CIFAM 800-986C · HELLA 8DD 355 115-381 · HELLA PAGID 8DD 355 115-381 · HELLA 8DD 355 128-921 · HELLA PAGID 8DD 355 128-921 · TEXTAR 92176103 · TEXTAR 92176105 · TEXTAR 92261805 · BENDIX BDS1201HC · DELPHI BG4172 · DELPHI BG4172C · BRECO BV 8893 · FERODO DDF1717 · FERODO DDF1717-1 · FERODO DDF1717C · GRAF DF29986C · TRW DF4807S · MINTEX MDC2567 · BOSCH 0 986 479 381 · TRUCKTEC AUTOMOTIVE 08.34.138 · BREMBO 09.B337.21 · BREMBO 09.B337.2X · ZIMMERMANN 150.2900.20 · ZIMMERMANN 150.2900.52 · ZIMMERMANN 150.3467.20 · ZIMMERMANN 150.3467.52 · ZIMMERMANN 150.3467.53 · A.B.S. 17937 · sbs 1815311582 · E.T.F. 19-1122 · MAXGEAR 19-1941
Compatible vehicles
BMW: 1 (F20), 1 (F21), 2 Kabriolett (F23), 2 Kupee (F22, F87), 3 (E90)

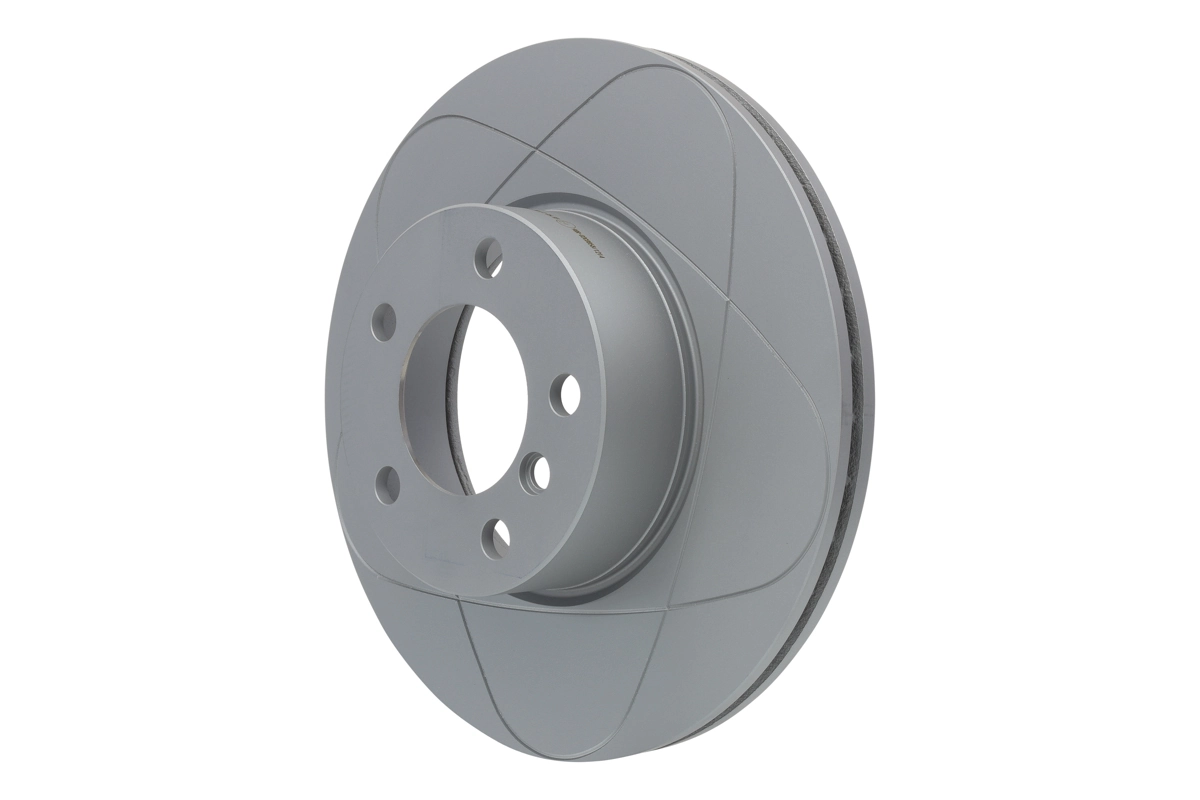

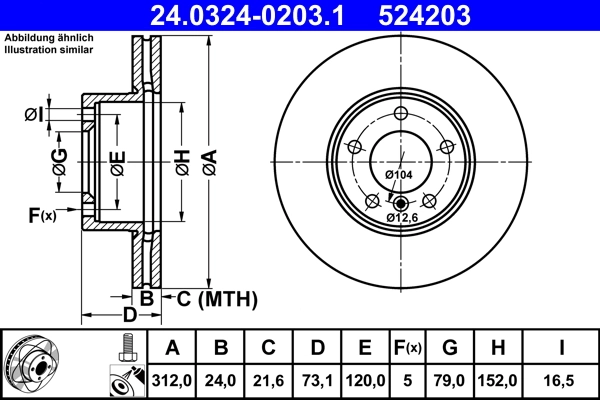

Brake Disc ATE 24.0324-0203.1
| Product Code | 24.0324-0203.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633418836 |
| Country of origin |  Spain |
| Weight | 9.29 kg |
| Package | 2 pcs |
| Height (mm) | 73,1 |
| Bore Diameter [mm] | 16,5 |
| Brake Disc Type | õhutusega |
| Brake Disc Thickness [mm] | 24,0 |
| Minimum Thickness (mm) | 21,6 |
| Finish | hochgekohlt |
| Inner Diameter [mm] | 152,0 |
| Outer Diameter [mm] | 312,0 |
| Number of Holes | 5 |
| Centring Diameter (mm) | 79,0 |
| Bore Ø (mm) | 120,0 |
| Surface | kaetud |
Min. order: 2 pcs
| BMW | 34 11 6 774 875 |
| BMW | 34 11 6 792 219 |
| BMW | 34 11 6 855 006 |
| BMW | 34 11 8 848 417 |
