OEM numbers
BMW 34 11 6 785 676
Alternatives and compatible parts
BOSCH 0 986 479 E27 · BREMBO 09.C408.13 · CAR 142.1591 · ZIMMERMANN 150.2913.20 · AP 25518 Z · HELLA 8DD 355 120-691 · HELLA PAGID 8DD 355 120-691 · TEXTAR 92266125 · DELPHI BG9161BC · BRECO BZ 9128 · FERODO DDF2042RC-1 · TRW DF6614S · ROULUNDS BRAKING WD01884 · BOSCH 0 986 479 E27 · BREMBO 09.C408.13 · FEBI BILSTEIN 108212 · ZIMMERMANN 150.2913.20 · ZIMMERMANN 150.2913.32 · A.B.S. 18276 · E.T.F. 19-2602 · AP 25518 Z · ORIGINAL Schäferbart 315 02 317 01 11 · SWAG 33 10 5396 · MAGNETI MARELLI 360406131204 · JURID 563284JC-1 · GIRLING 6066145 · KAWE 61598 11 · ROADHOUSE 61598.11 · REMSA 61598.11 · PAGID 65132 · RIDEX 82B1334 · HELLA 8DD 355 120-691 · HELLA PAGID 8DD 355 120-691 · TEXTAR 92266125 · BLUE PRINT ADB1143118 · COMLINE ADC2891VR · BORG & BECK BBD6179S · FREMAX BD-3542 · DJ PARTS BD2918 · LYNXAUTO BN-1326R · OPTIMAL BS-9336 · OPTIMAL BS-9336HC · BRECO BZ 9128 · WOKING D61598.11 · FERODO DDF2042RC-1 · TRW DF6614S · PATRON PBD1149 · PROTECHNIC PRD2953
Compatible vehicles
BMW: 5 (F10), 5 Gran Turismo (F07), 5 Touring (F11), 6 Gran Coupe (F06), 6 Kabriolett (F12)

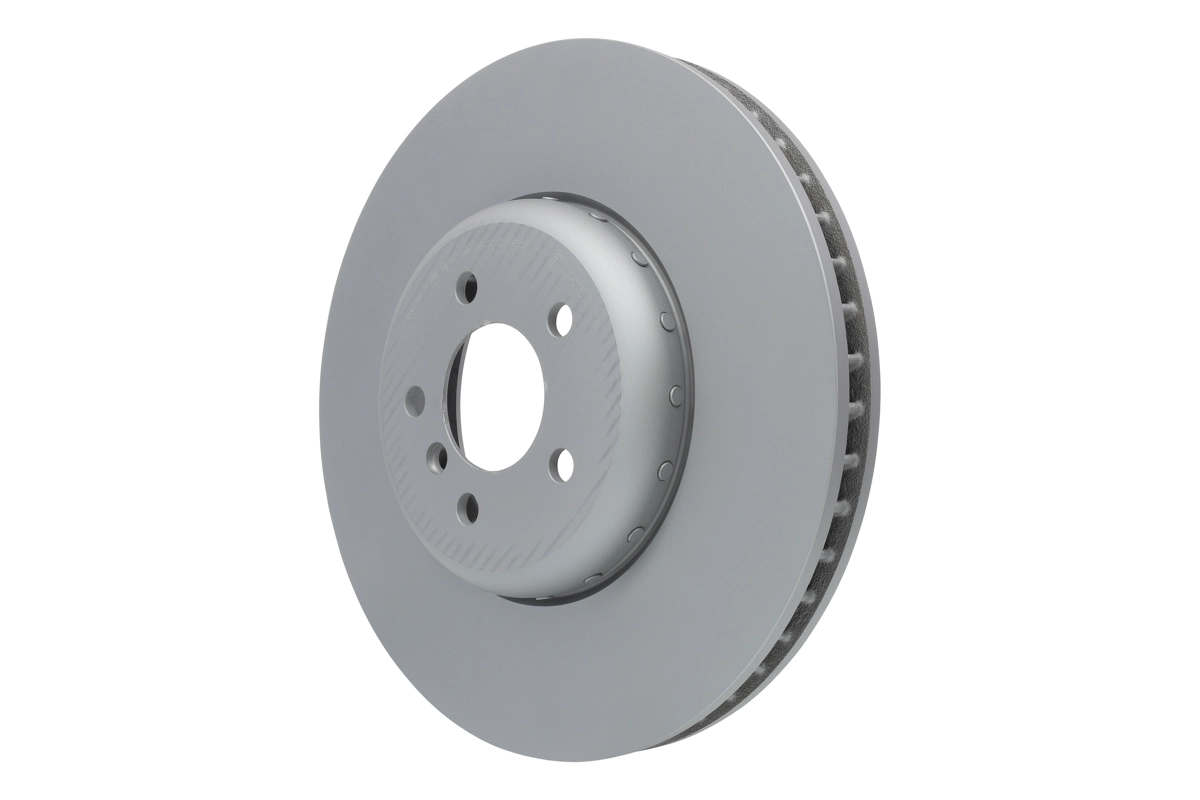

Brake Disc ATE 24.0136-0118.2
| Product Code | 24.0136-0118.2 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633372459 |
| Country of origin |  Spain |
| Weight | 14.11 kg |

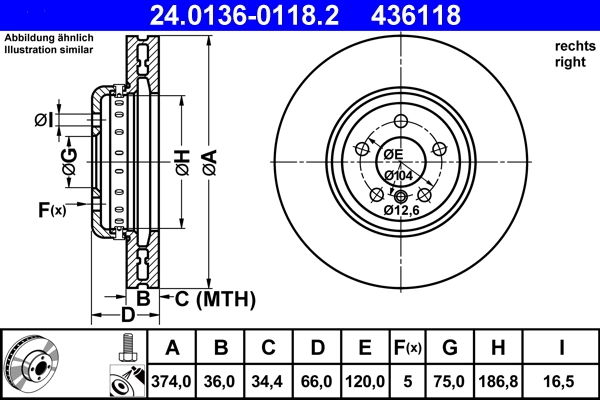

| Height (mm) | 66,0 |
| Bore Diameter [mm] | 16,5 |
| Brake Disc Type | kaheosaline piduriketas |
| Brake Disc Type | õhutusega |
| Brake Disc Thickness [mm] | 36,0 |
| Minimum Thickness (mm) | 34,4 |
| Finish | hochgekohlt |
| Inner Diameter [mm] | 186,8 |
| Outer Diameter [mm] | 374,0 |
| Number of Holes | 5 |
| Centring Diameter (mm) | 75,0 |
| Bore Ø (mm) | 120,0 |
| Surface | kaetud |
| BMW | 34 11 6 785 676 |
