OEM numbers
FORD 1490412 · FORD 6M34-1027-DA · MAZDA UM51-33-251 · MAZDA UR61-33-251
Alternatives and compatible parts
BOSCH 0 986 479 711 · BREMBO 09.B622.10 · CAR 142.1649 · PAGID 55230 · HELLA 8DD 355 116-841 · HELLA PAGID 8DD 355 116-841 · TEXTAR 92223000 · TRW DF6034S · LPR F1027V · MINTEX MDC2217 · NIPPARTS N3303091 · PILENGA V548 · ROULUNDS BRAKING WD01192 · ROULUNDS BRAKING WD02008 · BOSCH 0 986 479 711 · BREMBO 09.B622.10 · EUROREPAR 1676013480 · A.B.S. 18017 · sbs 1815203271 · MAXGEAR 19-3341 · NK 203271 · METELLI 23-1214 · AP 25364 · MAGNETI MARELLI 360704026400 · FEBI BILSTEIN 44104 · MAPCO 45828 · SWAG 50 94 4104 · PAGID 55230 · JURID 563113JC · JURID 563113JC-1 · EUROBRAKE 5815203271 · ASHIKA 60-03-323C · JAPKO 60323C · GIRLING 6060345 · KAWE 61706 10 · ROADHOUSE 61706.10 · REMSA 61706.10 · VILLAR 628.2767 · ICER 78BD6032-2 · R BRAKE 78RBD26032 · CIFAM 800-1214 · TRISCAN 8120 50163 · TRISCAN 8120 50163C · RIDEX 82B0610 · MAXTECH 853085.0000 · MAXTECH 853085.0060 · MAXTECH 853085.0080 · MAXTECH 853085.6060

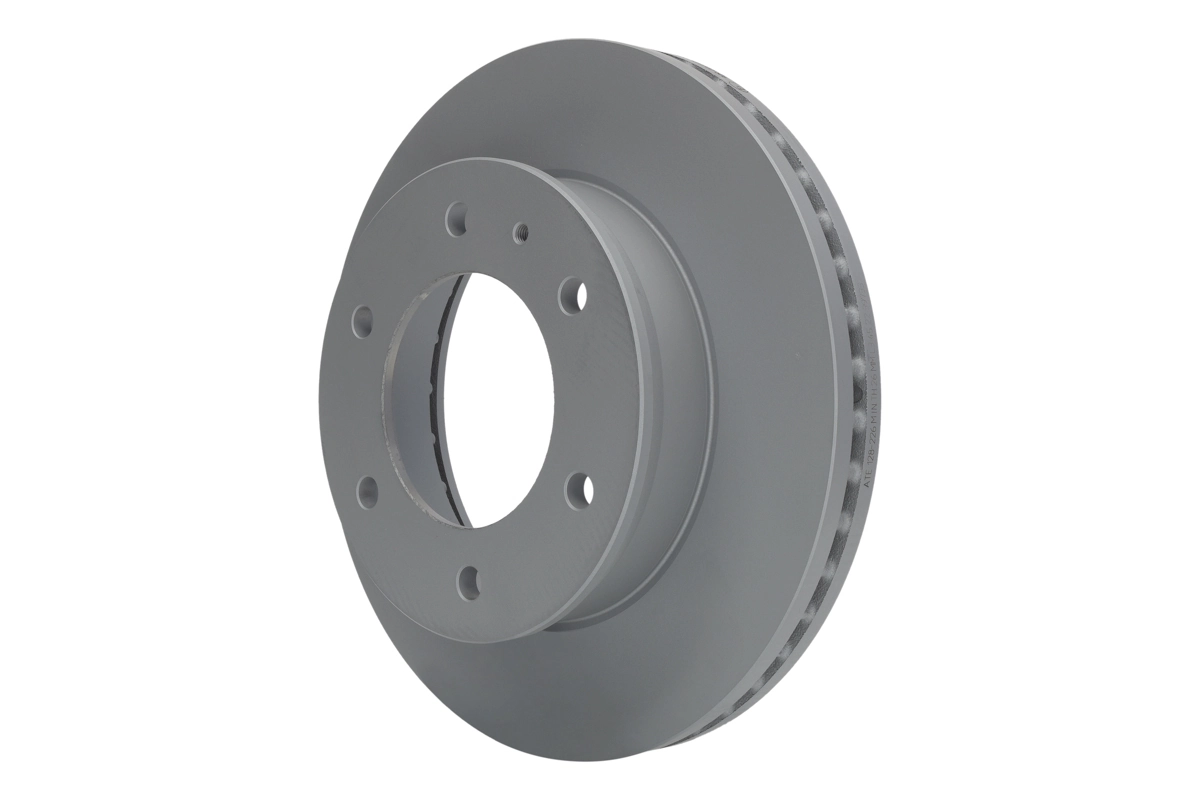

Brake Disc ATE 24.0128-0226.1

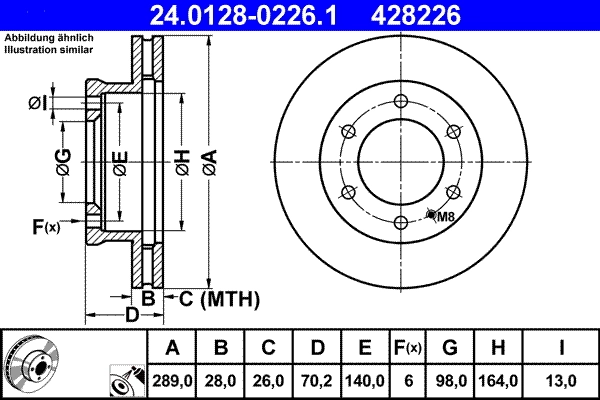

| Product Code | 24.0128-0226.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633327541 |
| Country of origin |  Spain |
| Weight | 9.14 kg |
| Package | 2 pcs |
| Height (mm) | 70,2 |
| Bore Diameter [mm] | 13,0 |
| Brake Disc Type | õhutusega |
| Brake Disc Thickness [mm] | 28,0 |
| Minimum Thickness (mm) | 26,0 |
| Finish | legeeritud |
| Inner Diameter [mm] | 164,0 |
| Outer Diameter [mm] | 289,0 |
| Number of Holes | 6 |
| Centring Diameter (mm) | 98,0 |
| Bore Ø (mm) | 140,0 |
| Surface | kaetud |
Min. order: 2 pcs
| FORD | 1490412 |
| FORD | 6M34-1027-DA |
| MAZDA | UM51-33-251 |
| MAZDA | UR61-33-251 |
