OEM numbers
MAZDA B37F-33-25XA
Alternatives and compatible parts
PAGID 55235PRO · HELLA 8DD 355 117-891 · HELLA PAGID 8DD 355 117-891 · A.B.S. 18116 · sbs 1815203272 · sbs 1815313272 · MAXGEAR 19-4663 · MAXGEAR 19-4663SPORT · NK 203272 · METELLI 23-1417C · NK 313272 · ZIMMERMANN 370.3084.20 · ZIMMERMANN 370.3084.52 · PAGID 55235 · JURID 563144JC · EUROBRAKE 5815203272 · EUROBRAKE 5815313272 · STELLOX 6020-3727VK-SX · GIRLING 6064905 · KAWE 61403 10 · ROADHOUSE 61403.10 · REMSA 61403.10 · CIFAM 800-1417C · RIDEX 82B1112 · HELLA 8DD 355 117-891 · HELLA PAGID 8DD 355 117-891 · FTE 9071329 · FTE 9081272 · TEXTAR 92223503 · COMLINE ADC0470V · BLUE PRINT ADM543119 · BLUE PRINT ADM543119C · COMLINE AND6873 · A.Z. Meisterteile AZMT-44-024-1918 · BORG & BECK BBD5979S · fri.tech. BD1661 · DJ PARTS BD2825 · DELPHI BG5121C · LYNXAUTO BN-1643 · KAVO PARTS BR-4788-C · OPTIMAL BS-8762 · OPTIMAL BS-8762HC · FTE BS7488 · FTE BS7488B · WOKING D61403.10 · FERODO DDF1880C · TRUSTING DF1661 · TRW DF6490S
Compatible vehicles
MAZDA: 3 (BK), 3 (BL)

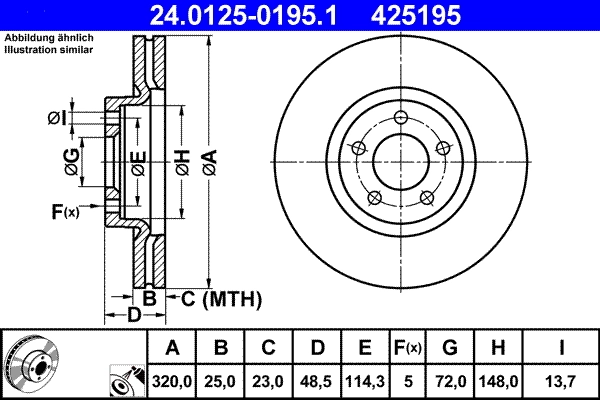

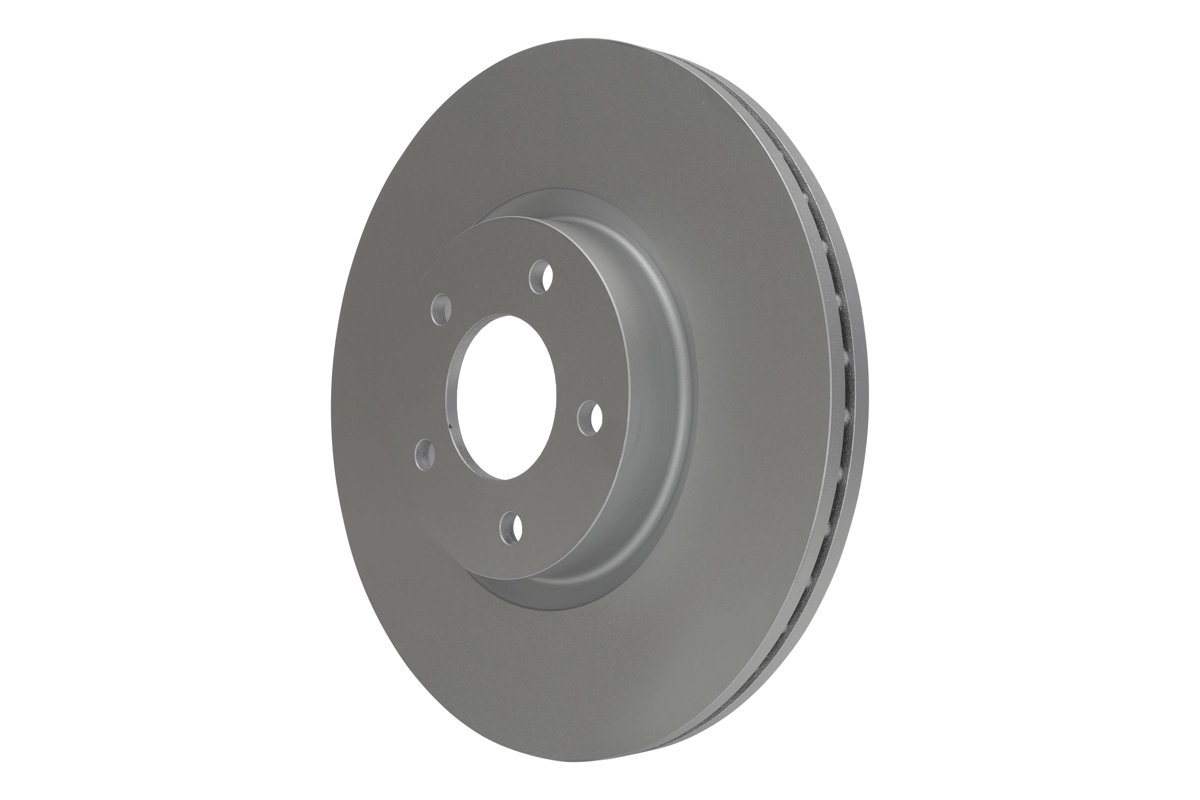

Brake Disc ATE 24.0125-0195.1
| Product Code | 24.0125-0195.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633338141 |
| Country of origin |  Spain |
| Weight | 9.277 kg |
| Package | 2 pcs |
| Height (mm) | 48,5 |
| Bore Diameter [mm] | 13,7 |
| Brake Disc Type | õhutusega |
| Brake Disc Thickness [mm] | 25,0 |
| Minimum Thickness (mm) | 23,0 |
| Finish | hochgekohlt |
| Inner Diameter [mm] | 148,0 |
| Outer Diameter [mm] | 320,0 |
| Number of Holes | 5 |
| Centring Diameter (mm) | 72,0 |
| Bore Ø (mm) | 114,3 |
| Surface | kaetud |
| MAZDA | B37F-33-25XA |
