OEM numbers
BMW 34 10 1 166 071 · BMW 34 11 6 769 305 · BMW 34 11 6 855 156 · BMW 34 11 6 864 047
Alternatives and compatible parts
BOSCH 0 986 478 012 · BREMBO 09.8952.10 · BREMBO 09.8952.11 · BREMBO 09.8952.1X · BREMBO 09.8952.75 · BRADI 1.0648.2.4 · PEX 14.0811 · CAR 142.077 · ZIMMERMANN 150.1294.00 · ZIMMERMANN 150.1294.20 · ZIMMERMANN 150.1294.50 · ZIMMERMANN 150.1294.52 · FEBI BILSTEIN 18558 · VALEO 186731 · NK 201543 · METELLI 23-0518 · PAGID 50318 · PAGID 50318PRO · BENDIX 562188B · JURID 562188J · JURID 562188JC · QUINTON HAZELL 6598.10 · REMSA 6598.10 · ROADHOUSE 6598.10 · CIFAM 800-518 · HELLA 8DD 355 107-661 · HELLA PAGID 8DD 355 107-661 · HELLA 8DD 355 107-671 · HELLA PAGID 8DD 355 107-671 · TEXTAR 92106900 · TEXTAR 92106903 · TEXTAR 92106905 · TEXTAR 98200 1069 0 1 · TEXTAR 98200 1069 0 1 PRO · GALFER B1.G225-0138.1 · QUINTON HAZELL BDC5228 · DELPHI BG3830 · FTE BS5228 · QUINTON HAZELL BSF5228 · MGA D1452 · ROULUNDS BRAKING D2515 · FERODO DDF1174 · FERODO DDF1174C · FERODO DDF1174C-1 · GRAF DF29518 · TRW DF4166 · TRW DF4166BP · FERODO DRF1174

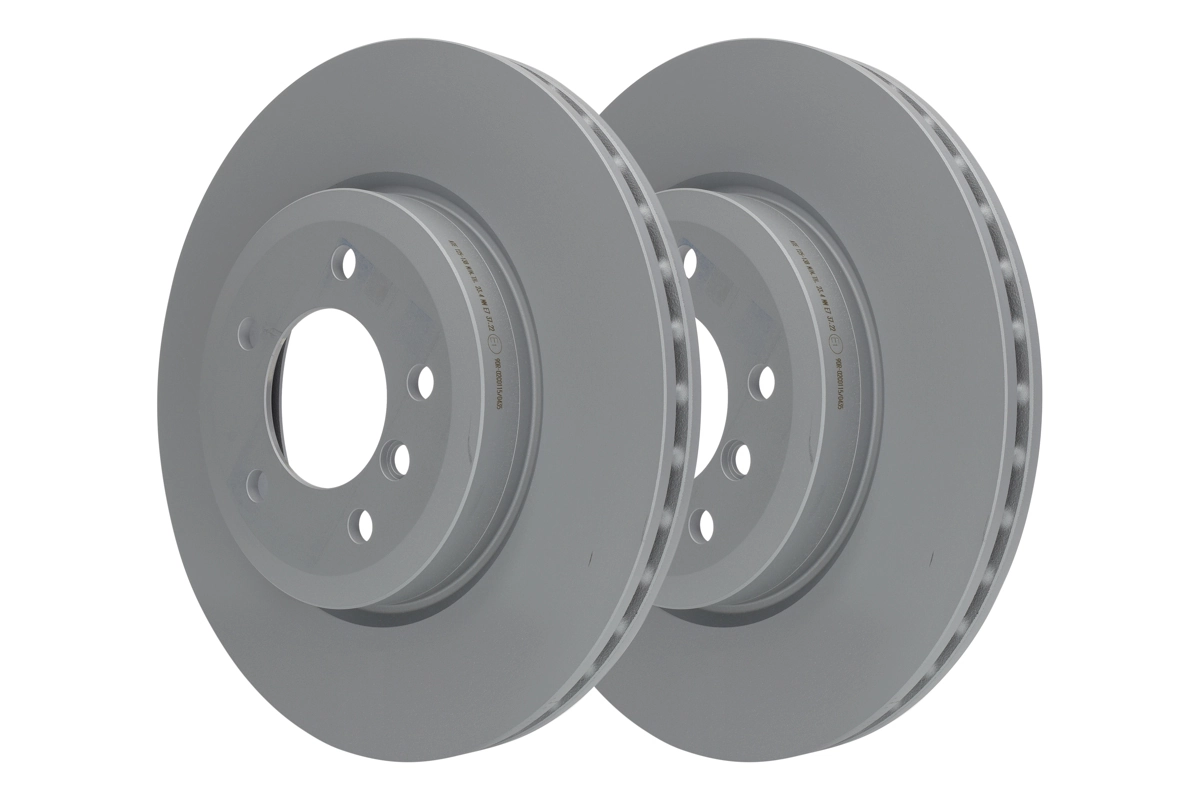

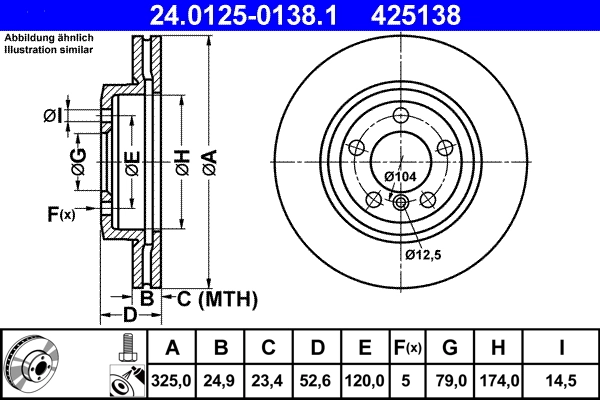

Brake Disc ATE 24.0125-0138.1
| Product Code | 24.0125-0138.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633084048 |
| Country of origin |  Spain |
| Weight | 9.015 kg |
| Height (mm) | 52,6 |
| Bore Diameter [mm] | 14,5 |
| Brake Disc Type | õhutusega |
| Brake Disc Thickness [mm] | 24,9 |
| Minimum Thickness (mm) | 23,4 |
| Finish | hochgekohlt |
| Inner Diameter [mm] | 174,0 |
| Outer Diameter [mm] | 325,0 |
| Number of Holes | 5 |
| Centring Diameter (mm) | 79,0 |
| Bore Ø (mm) | 120,0 |
| Surface | kaetud |
Min. order: 2 pcs
| BMW | 34 10 1 166 071 |
| BMW | 34 11 6 769 305 |
| BMW | 34 11 6 855 156 |
| BMW | 34 11 6 864 047 |
