OEM numbers
NISSAN 40206-1HA0A
Alternatives and compatible parts
BOSCH 0 986 479 090 · BREMBO 09.C543.10 · BREMBO 09.C543.11 · CAR 142.1620 · VALEO 197588 · ZIMMERMANN 200.2525.20 · PAGID 55399PRO · HELLA 8DD 355 118-291 · HELLA PAGID 8DD 355 118-291 · TEXTAR 92239903 · GALFER B1.G222-0277.1 · FERODO DDF2068 · FERODO DDF2068C · TRW DF6430 · GALFER G2122277 · NIPPARTS N3301101 · BOSCH 0 986 479 090 · BREMBO 09.C543.11 · KAMOKA 103239 · FEBI BILSTEIN 108407 · BSF 11708V · MAPCO 15524C · EUROREPAR 1622814680 · sbs 1815312278 · A.B.S. 18211 · MAXGEAR 19-3218 · E.T.F. 19-7796 · VALEO 197588 · ZIMMERMANN 200.2525.20 · MASTER-SPORT GERMANY 202202770 · NK 202278 · METELLI 23-1659C · MASTER-SPORT GERMANY 24012202771-PCS-MS · MASTER-SPORT GERMANY 24012202771-SET-MS · AP 25567 V · KLAXCAR FRANCE 25631z · JPN 30H1098-JPN · NK 312278 · SWAG 33 10 7112 · MEYLE 36-15 521 0054 · ProfiPower 3B1211 · PAGID 55399 · CHAMPION 562693CH · JURID 562693JC · JURID 562693JC-1 · MEC-DIESEL 578220 · EUROBRAKE 5815202278 · EUROBRAKE 5815312278
Compatible vehicles
NISSAN: ALMERA (N17), MICRA IV (K13K, K13KK), NOTE (E12), VERSA II (N17_)

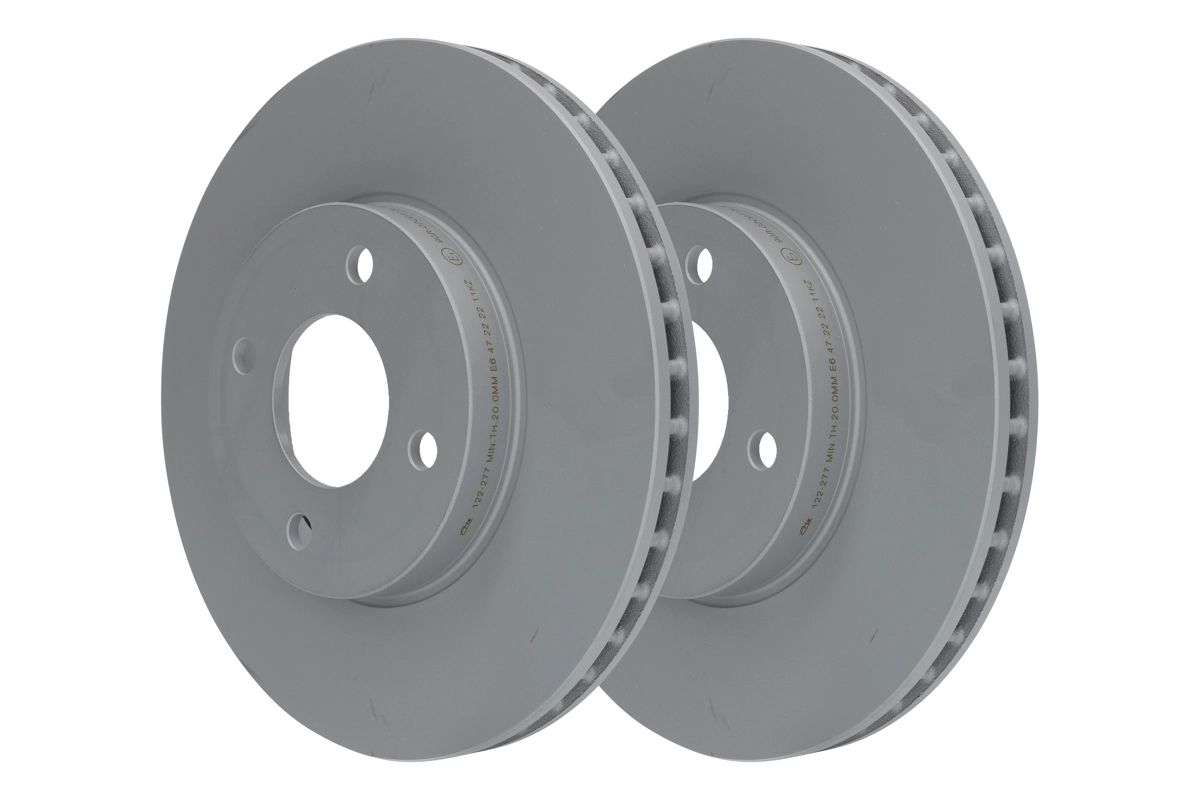

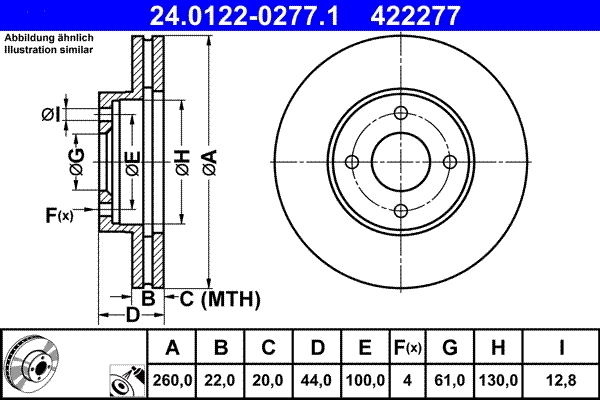

Brake Disc ATE 24.0122-0277.1
| Product Code | 24.0122-0277.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633383196 |
| Country of origin |  Spain |
| Weight | 4.988 kg |
| Height (mm) | 44,0 |
| Bore Diameter [mm] | 12,8 |
| Brake Disc Type | õhutusega |
| Brake Disc Thickness [mm] | 22,0 |
| Minimum Thickness (mm) | 20,0 |
| Inner Diameter [mm] | 130,0 |
| Outer Diameter [mm] | 260,0 |
| Number of Holes | 4 |
| Centring Diameter (mm) | 61,0 |
| Bore Ø (mm) | 100,0 |
| Surface | kaetud |
| NISSAN | 40206-1HA0A |
