OEM numbers
TOYOTA 42431-47050 · TOYOTA 42431-47080
Alternatives and compatible parts
BOSCH 0 986 479 V25 · BREMBO 08.C931.11 · AP 10023 V · FEBI BILSTEIN 108579 · ZIMMERMANN 590.2845.20 · HELLA 8DD 355 132-591 · HELLA PAGID 8DD 355 132-591 · TEXTAR 92314203 · BENDIX BDS2158 · DELPHI BG4757C · BRECO BV 6187 · FERODO DDF2307C · HERTH+BUSS JAKOPARTS J3312080 · MINTEX MDC2919C · NIPPARTS N3312079 · LPR T2099P · BOSCH 0 986 479 V25 · BREMBO 08.C931.11 · AP 10023 V · FEBI BILSTEIN 108579 · EUROREPAR 1676009080 · sbs 18153145180 · A.B.S. 18532 · NK 3145180 · SWAG 33 10 6441 · MAPCO 45578 · PAGID 56142 · EUROBRAKE 58153145180 · ZIMMERMANN 590.2845.20 · ASHIKA 61-02-266C · JAPKO 61266C · KAWE 62056 00 · ROADHOUSE 62056.00 · REMSA 62056.00 · VILLAR 628.3179 · TRISCAN 8120 131058 · TRISCAN 8120 131058C · RIDEX 82B1721 · MOTRIO 8550501969 · HELLA 8DD 355 132-591 · HELLA PAGID 8DD 355 132-591 · TEXTAR 92314203 · COMLINE ADC2806 · BLUE PRINT ADT343290 · COMLINE AND6984 · A.Z. Meisterteile AZMT-44-024-1708 · BORG & BECK BBD5372 · BENDIX Braking BDS2158
Compatible vehicles
TOYOTA: AQUA (_NHP1_), MIRAI (JPD1_), PRIUS PLUS (_W4_), PRIUS PLUS VAN (_W4_)

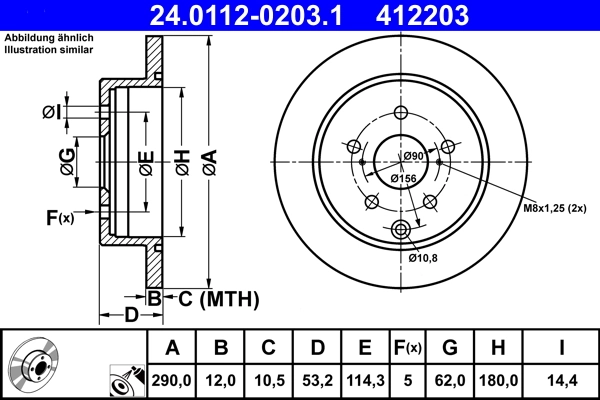

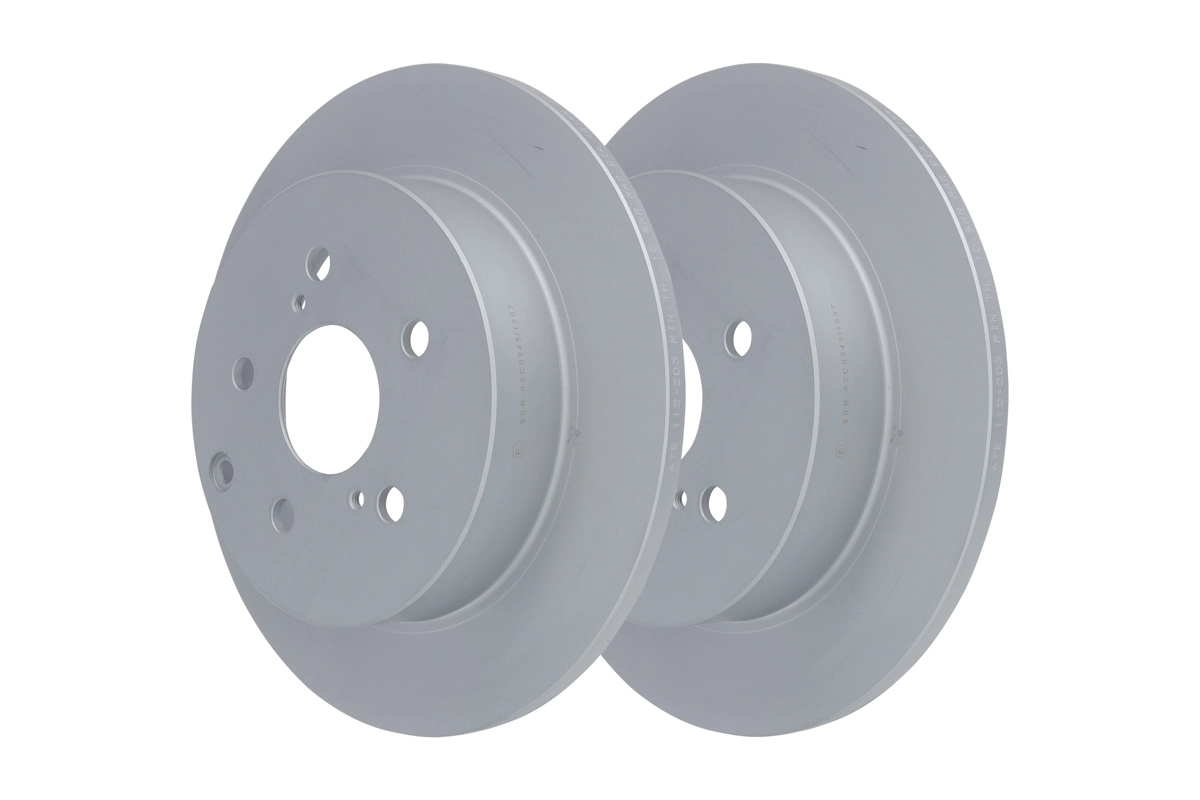

Brake Disc ATE 24.0112-0203.1
| Product Code | 24.0112-0203.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633405737 |
| Country of origin |  Spain |
| Weight | 5.245 kg |
| Height (mm) | 53,2 |
| Bore Diameter [mm] | 14,4 |
| Brake Disc Type | täis |
| Brake Disc Thickness [mm] | 12,0 |
| Minimum Thickness (mm) | 10,5 |
| Inner Diameter [mm] | 180,0 |
| Outer Diameter [mm] | 290,0 |
| Number of Holes | 5 |
| Centring Diameter (mm) | 62,0 |
| Bore Ø (mm) | 114,3 |
| Surface | kaetud |
Min. order: 2 pcs
| TOYOTA | 42431-47050 |
| TOYOTA | 42431-47080 |
