OEM numbers
FORD 2196429 · FORD JX61-2A315-AEA
Alternatives and compatible parts
BOSCH 0 986 479 F78 · BREMBO 08.D864.11 · AP 10082 V · FEBI BILSTEIN 108193 · CAR 142.2056 · METELLI 23-1897C · ZIMMERMANN 250.1316.20 · NK 3125116 · JURID 563665JC · REMSA 62522.00 · ROADHOUSE 62522.00 · CIFAM 800-1897C · HELLA 8DD 355 132-031 · HELLA PAGID 8DD 355 132-031 · TEXTAR 92303503 · BENDIX BDS1590 · DELPHI BG5297C · BRECO BV 6229 · FERODO DDF3022C · TRW DF6556 · HERTH+BUSS JAKOPARTS J3310827 · MINTEX MDC2867C · BOSCH 0 986 479 F78 · BREMBO 08.D864.11 · AP 10082 V · FEBI BILSTEIN 108193 · A.B.S. 18739 · ZIMMERMANN 250.1316.20 · SWAG 33 10 5554 · MAGNETI MARELLI 360406173401 · PAGID 56035 · VILLAR 628.3198 · TOPRAN 631 171 · HELLA 8DD 355 132-031 · HELLA PAGID 8DD 355 132-031 · TEXTAR 92303503 · COMLINE ADC4074 · BLUE PRINT ADF124379 · BORG & BECK BBD5548 · QUINTON HAZELL BDC6190 · BENDIX Braking BDS1590 · DELPHI BG5297C · OPTIMAL BS-9720C · BRECO BV 6229 · MGA D2254 · WOKING D62522.00 · APEC DSK3481 · JURATEK FOR211
Compatible vehicles
FORD: FOCUS IV (HN), FOCUS IV Sedaan (HM), FOCUS IV Turnier (HP)

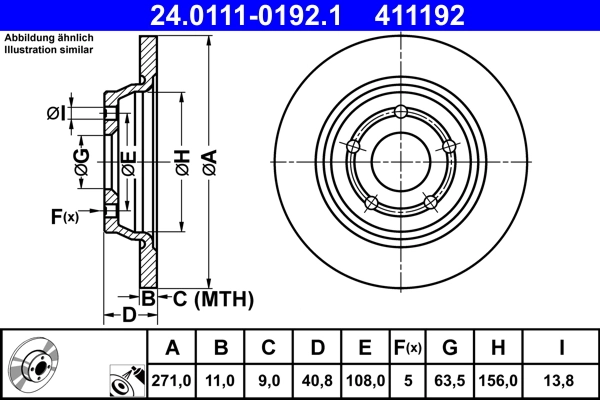

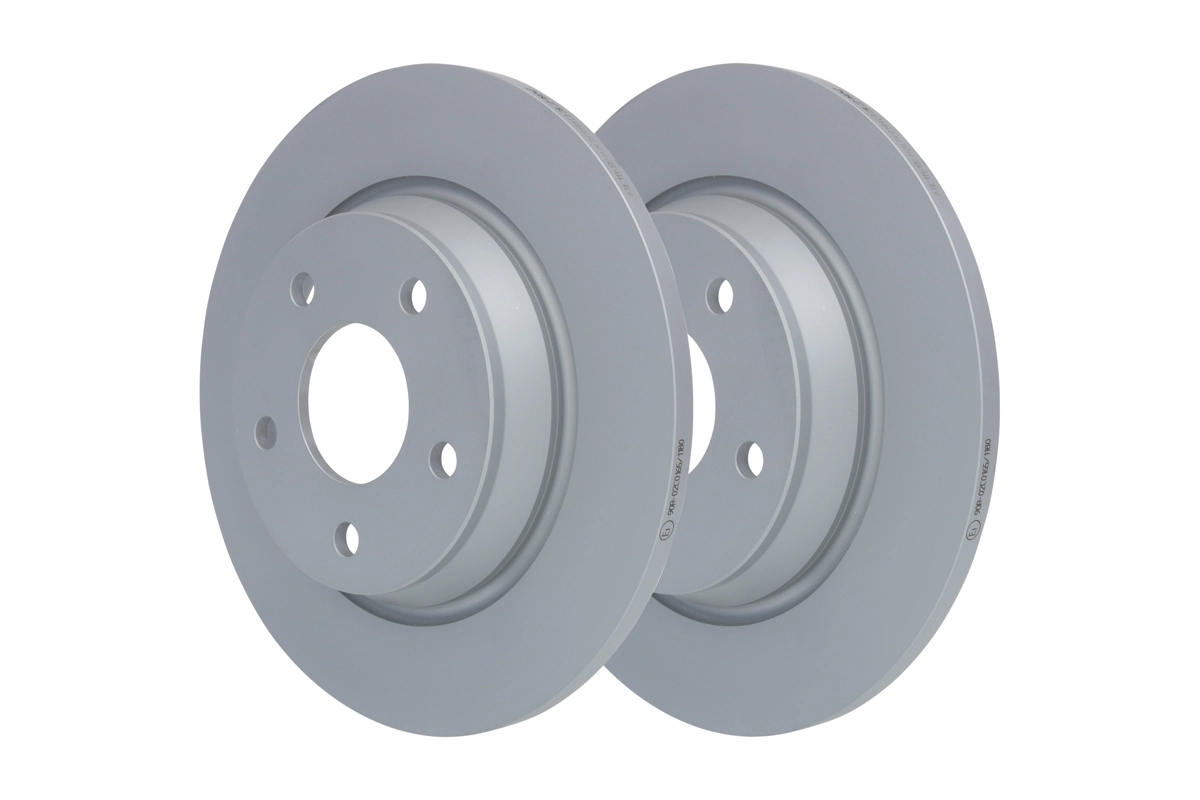

Brake Disc ATE 24.0111-0192.1
| Product Code | 24.0111-0192.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633482004 |
| Country of origin |  Spain |
| Weight | 4.155 kg |
| Height (mm) | 40,8 |
| Bore Diameter [mm] | 13,8 |
| Brake Disc Type | täis |
| Brake Disc Thickness [mm] | 11,0 |
| Minimum Thickness (mm) | 9,0 |
| Inner Diameter [mm] | 156,0 |
| Outer Diameter [mm] | 271,0 |
| Number of Holes | 5 |
| Centring Diameter (mm) | 63,5 |
| Bore Ø (mm) | 108,0 |
| Surface | kaetud |
Min. order: 2 pcs
| FORD | 2196429 |
| FORD | JX61-2A315-AEA |
