OEM numbers
SUZUKI 55611-52R00 · SUZUKI 55611-52R01
Alternatives and compatible parts
BOSCH 0 986 479 F38 · BREMBO 08.D248.11 · CAR 142.2054 · AP 15161 V · sbs 1815315240 · NK 315240 · ROADHOUSE 62099.00 · HELLA 8DD 355 132-041 · HELLA PAGID 8DD 355 132-041 · TEXTAR 92303603 · DELPHI BG5053C · BRECO BV 6153 · HERTH+BUSS JAKOPARTS J3318012 · MINTEX MDC2868C · BOSCH 0 986 479 F38 · BREMBO 08.D248.11 · AP 15161 V · A.B.S. 18682 · METELLI 23-1875C · NK 315240 · PAGID 56036 · EUROBRAKE 5815315240 · ASHIKA 61-08-806C · JAPKO 61806C · CIFAM 800-1875C · HELLA 8DD 355 132-041 · HELLA PAGID 8DD 355 132-041 · TEXTAR 92303603 · BLUE PRINT ADK84351 · BLUE PRINT ADK84352 · fri.tech. BD1875 · BENDIX Braking BDS2137 · KAVO PARTS BR-8751-C · BRECO BV 6153 · TRUSTING DF1875 · TRW DF8948S · TRW DF8948XSS · JAPANPARTS DP-806C · HERTH+BUSS JAKOPARTS J3318012 · ASHUKI by Palidium K016-70 · MINTEX MDC2868C · MDR MRD-2Z801 · NISSHINBO ND9021 · JURID 563803JC-1 · JURID 563584JC · SIGMAUTO DBC981S · BREMSI CD8981S · JAPANPARTS DP806JM
Compatible vehicles
SUZUKI: SWIFT V (AZ)

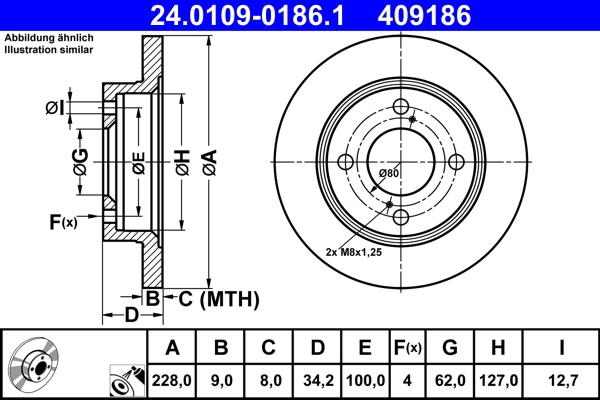

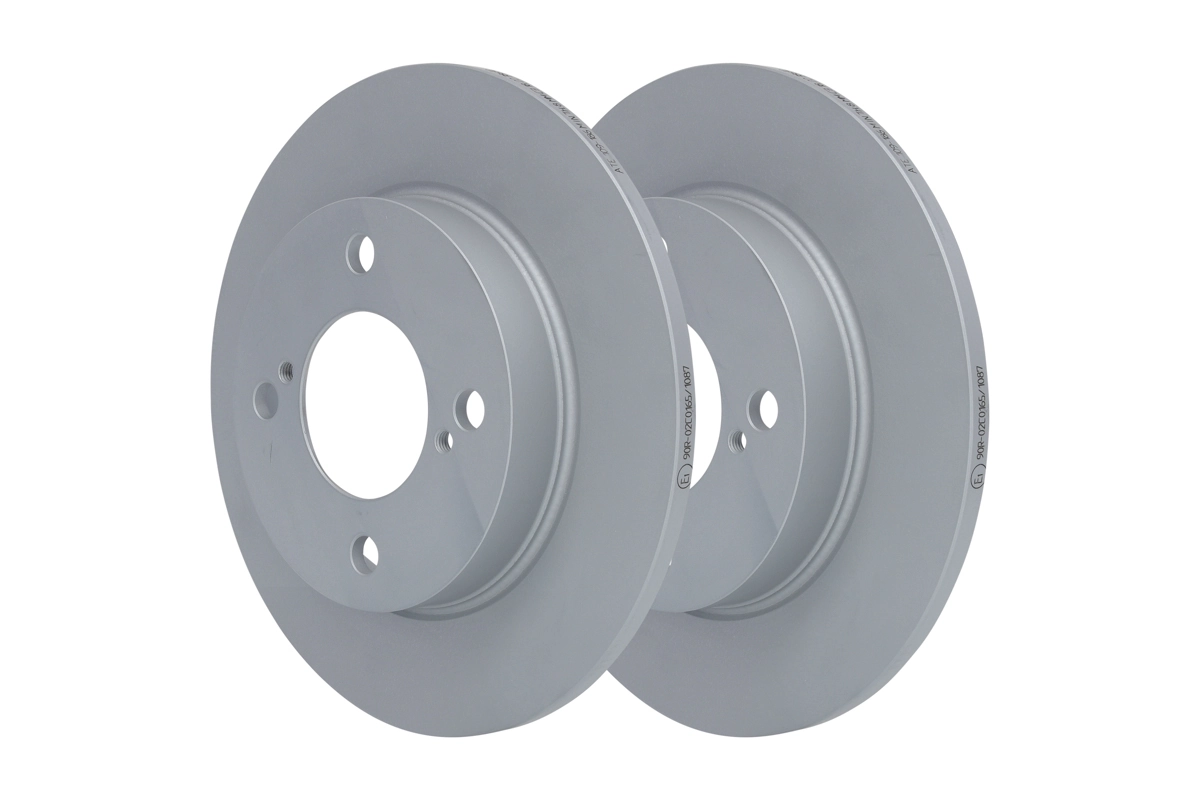

Brake Disc ATE 24.0109-0186.1
| Product Code | 24.0109-0186.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633486781 |
| Country of origin |  Spain |
| Weight | 2.645 kg |
| Height (mm) | 34,2 |
| Bore Diameter [mm] | 12,7 |
| Brake Disc Type | täis |
| Brake Disc Thickness [mm] | 9,0 |
| Minimum Thickness (mm) | 8,0 |
| Inner Diameter [mm] | 127,0 |
| Outer Diameter [mm] | 228,0 |
| Number of Holes | 4 |
| Centring Diameter (mm) | 62,0 |
| Bore Ø (mm) | 100,0 |
| Surface | kaetud |
Min. order: 2 pcs
| SUZUKI | 55611-52R00 |
| SUZUKI | 55611-52R01 |
