OEM numbers
NISSAN 43206-EM10A · NISSAN D3206-EM10A
Alternatives and compatible parts
BOSCH 0 986 479 742 · BREMBO 08.A715.20 · BREMBO 08.A715.21 · AP 15024 · AP 15024 V · VALEO 197520 · ZIMMERMANN 200.2521.20 · HELLA 8DD 355 122-981 · HELLA PAGID 8DD 355 122-981 · FTE 9072210 · TEXTAR 92234303 · GALFER B1.G209-0166.1 · BENDIX BDS2026 · DELPHI BG4666C · BRECO BS 6016 · BRECO BV 6016 · FERODO DDF1941C · TRW DF6317 · GALFER G2109166 · HERTH+BUSS JAKOPARTS J3311007 · MINTEX MDC2710 · NIPPARTS N3311049 · BOSCH 0 986 479 742 · BREMBO 08.A715.20 · BREMBO 08.A715.21 · KAMOKA 103501 · BSF 11832 · AP 15024 · AP 15024 V · A.B.S. 18040 · sbs 1815312284 · MAXGEAR 19-2792 · MAXGEAR 19-2792SPORT · VALEO 197520 · ZIMMERMANN 200.2521.20 · NK 202284 · METELLI 23-1473C · NK 312284 · JPN 40H1030-JPN · Oyodo 40H1030-OYO · PAGID 55343 · EUROBRAKE 5815202284 · EUROBRAKE 5815312284 · STELLOX 6020-1831-SX · STELLOX 6020-1831K-SX · SAKURA 605-10-4096 · GIRLING 6063174 · ASHIKA 61-01-108C

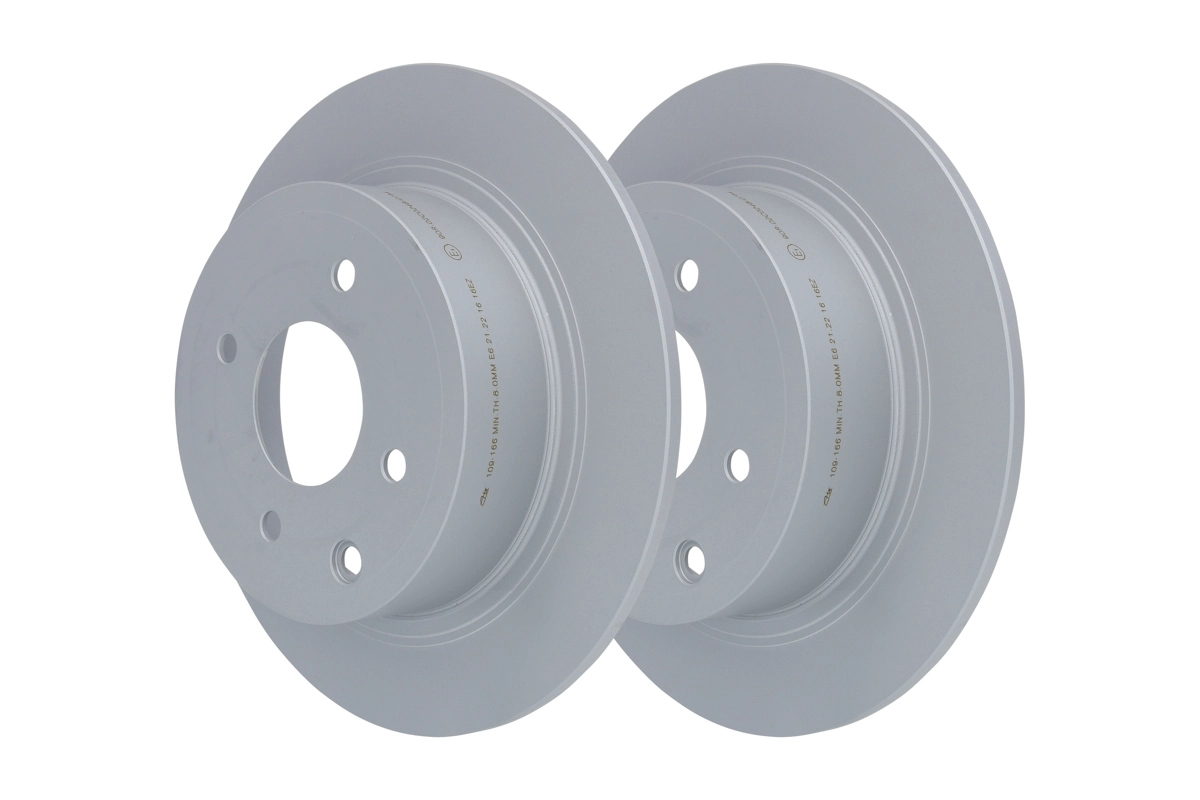

Brake Disc ATE 24.0109-0166.1
| Product Code | 24.0109-0166.1 |
| Brand | ATE |
| Product group | Brake Disc |
| EAN | 4006633381376 |
| Country of origin |  Spain |
| Weight | 4.82 kg |

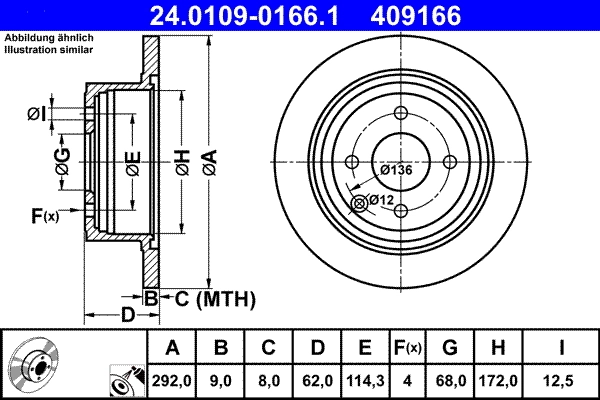

| Height (mm) | 62,0 |
| Bore Diameter [mm] | 12,5 |
| Brake Disc Type | täis |
| Brake Disc Thickness [mm] | 9,0 |
| Minimum Thickness (mm) | 8,0 |
| Inner Diameter [mm] | 172,0 |
| Outer Diameter [mm] | 292,0 |
| Number of Holes | 4 |
| Centring Diameter (mm) | 68,0 |
| Bore Ø (mm) | 114,3 |
| Surface | kaetud |
Min. order: 2 pcs
| NISSAN | 43206-EM10A |
| NISSAN | D3206-EM10A |
