OEM numbers
FIAT 52017292 · FIAT 52017293 · FIAT 52067393 · FIAT 52067394 · FIAT 52159154 · FIAT 52159155
Alternatives and compatible parts
BOSCH 0 986 479 G82 · BREMBO 09.5180.41 · A.B.S. 18585 · ZIMMERMANN 230.2385.52 · ATE 24.0126-0192.1 · AP 25642 V · NK 312371 · JURID 563274JC · EUROBRAKE 5815312371 · ICER 78BD0104-2 · HELLA PAGID 8DD 355 132-131 · TEXTAR 92304803 · DELPHI BG4821C · BRECO BV 9421 · FERODO DDF2776C · TRW DF6933 · RAICAM RD01570 · PILENGA V1208 · BOSCH 0 986 479 G82 · FEBI BILSTEIN 173028 · sbs 1815312371 · A.B.S. 18585 · MAXGEAR 19-4766 · MEYLE 215 523 0037/PD · ZIMMERMANN 230.2385.52 · ATE 24.0126-0192.1 · NK 312371 · SWAG 33 10 1591 · JURID 563274JC · JURID 563274JC-1 · EUROBRAKE 5815312371 · BLUE PRINT ADBP430068 · COMLINE ADC2974V · COMLINE AND7156 · FERODO DDF2776C · MOTAQUIP LVBD2025 · National NBD2077 · ROTINGER RT 22227 · ROTINGER RT 22227-GL · ROTINGER RT 22227-GL T3 · ROTINGER RT 22227-GL T5 · ROTINGER RT 22227-GL T6 · ROTINGER RT 22227-GL T9 · SKF VKBD 80809 V2 · Burig B011069 · 0AMS RIF-089 · BREMSI CD8776V · SIGMAUTO DBC776V
Compatible vehicles
FIAT: TIPO Luukpära (356_, 357_), TIPO Sedaan (356_, 357_), TIPO Universaal (356_, 357_)

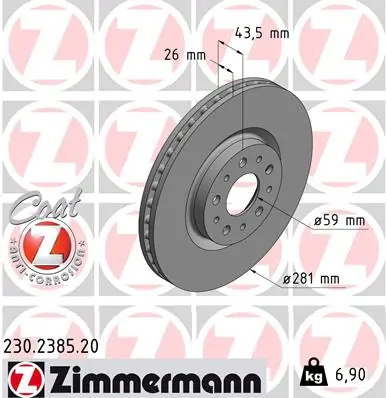

Brake Disc ZIMMERMANN 230.2385.20
| Product Code | 230.2385.20 |
| Brand | ZIMMERMANN |
| Product group | Brake Disc |
| EAN | 4250238768760 |
| Weight | 6.9 kg |
| Number of Rim Holes | 5 |
| Height (mm) | 44 |
| Weight (kg) | 6,90 |
| Brake Disc Type | sisemine õhutus |
| Brake Disc Thickness [mm] | 26 |
| Minimum Thickness (mm) | 24,2 |
| Bolt Pattern / Number of Holes | 10/5 |
| Outer Diameter [mm] | 281 |
| Centring Diameter (mm) | 59 |
| Bore Ø (mm) | 98 |
| Surface | kaetud |
| FIAT | 52017292 |
| FIAT | 52017293 |
| FIAT | 52067393 |
| FIAT | 52067394 |
| FIAT | 52159154 |
| FIAT | 52159155 |
